SCUDO

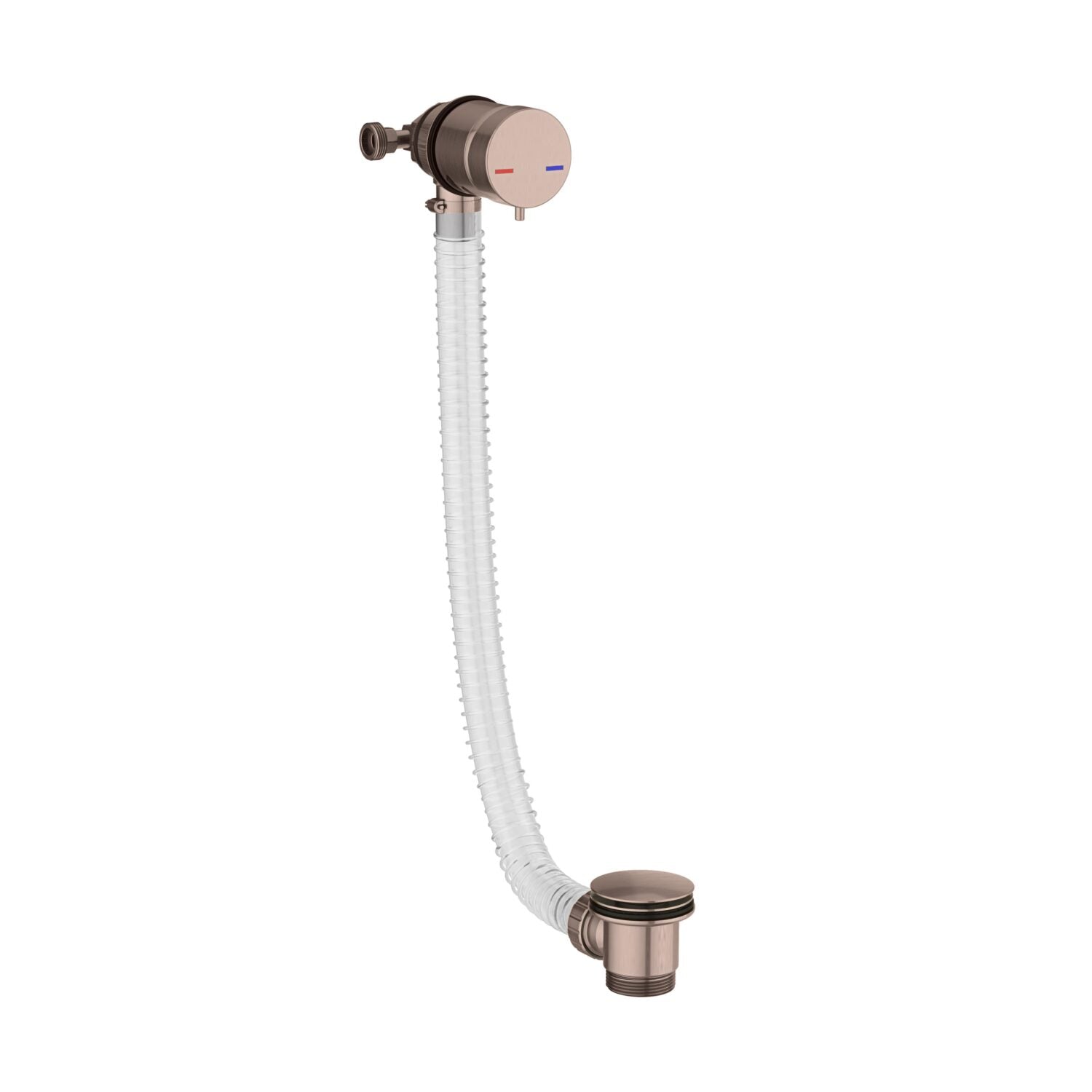

Bath Filler and Overflow Brushed Bronze

Bath Filler and Overflow Brushed Bronze

SKU:WASTE113BZ

Regular price £218.00 GBP
Regular price Sale price £218.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

General Specification

Construction Material
Brass, Stainless Steel, Plastic
Installation type
Bath fixed
Colour / Finish
Brushed Bronze

Waste specification

Type
Bath Filler & Overflow
Slotted or Unslotted
Slotted
Connection
Threaded Nut
Function
Clicker
Length of Overflow Hose (mm)
600

Tap / Shower specification

WRAS Approved
0
TMV Approved
0
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5.0
Flexible Tails Included
0
Number of tap holes required
0
Handle Type
lever
Swivel Spout
0
Inlet Connection
0
Outlet Connection
0
Tap Hole Diameter (mm)
0
Tap Type description
Manual Mixer
Includes Waste
0
Valve / Cartridge Type
0
Cartridge Spare code
0

Flow Rates

0.2bar (l/min)
3.2
0.5bar (l/min)
7
1bar (l/min)
12
2bar (l/min)
17.7
3bar (l/min)
21.3

Product Transportation

Barcode: 5060964935553
Country of origin: CH
Commodity code: 8481801190

Product Measurements

Product Weight (KG): 0.435

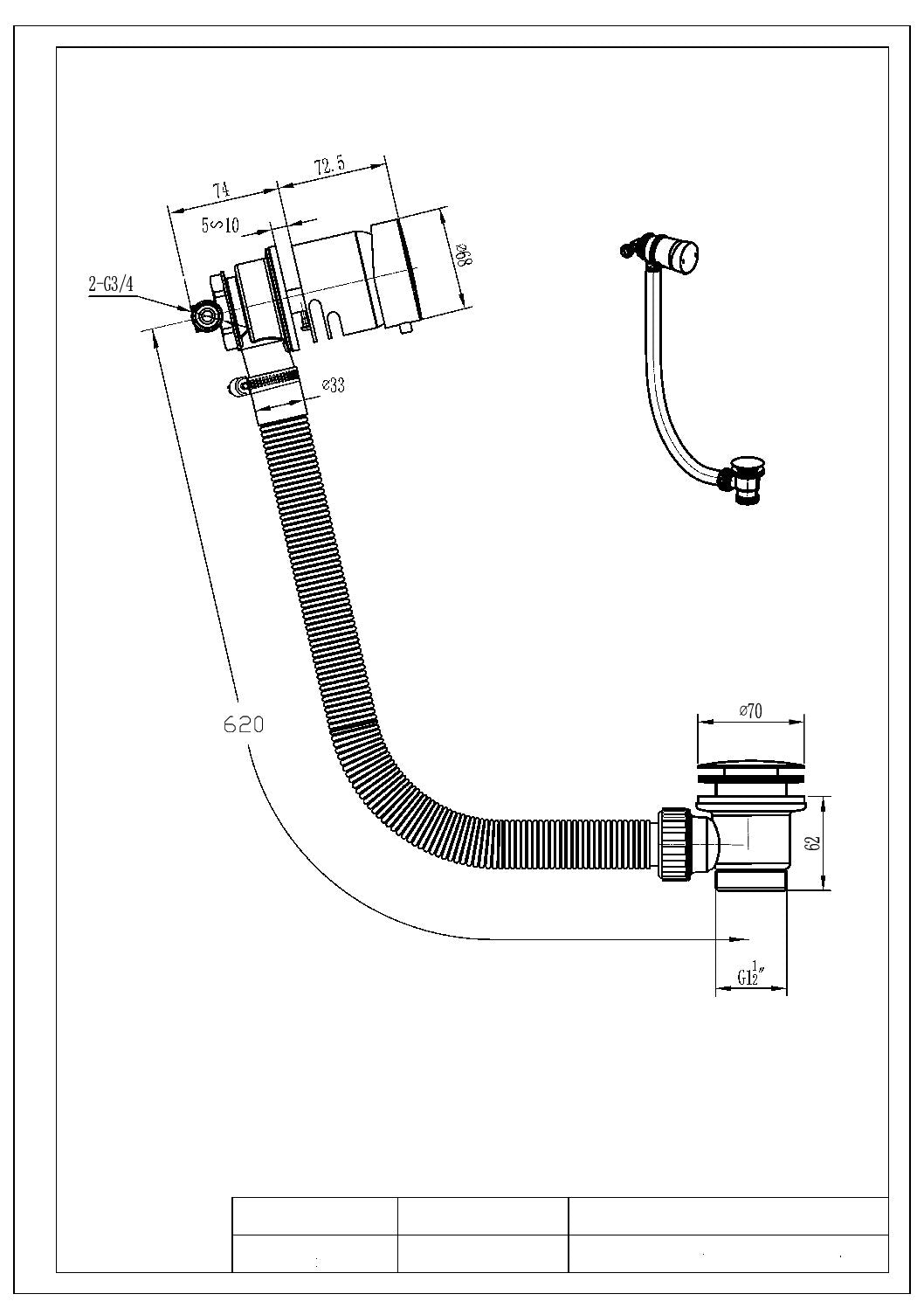

Product Width (mm): See Line Drawing
Product Height (mm): –
Product Depth (mm): –
Product Length (mm): –

Primary Packed Measurements

Packaged Weight: 0.55
Packed Length: 24
Packed Width: 13.5
Packed Height: 10

Packaging Weights

Card (kg): n/a
Paper (kg): n/a
Wood (kg): n/a
Plastic (kg): n/a

Compliance DOP

HBDOC034 , HBDOC035
