SCUDO

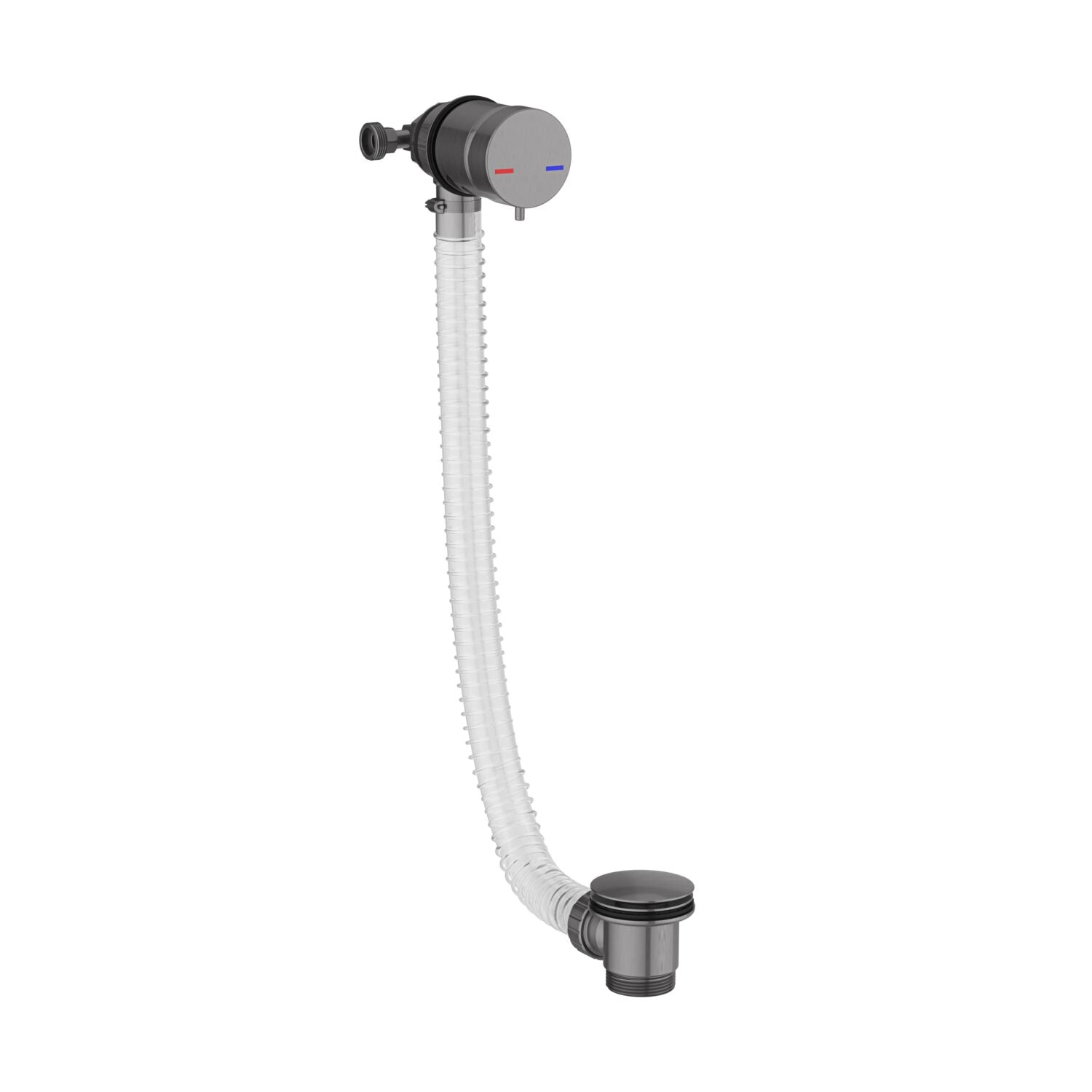

Bath Filler and Overflow Gunmetal

Bath Filler and Overflow Gunmetal

SKU:WASTE108GM

Regular price £218.00 GBP
Regular price Sale price £218.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

General Specification

Construction Material
Brass, Stainless Steel, Plastic
Installation type
Bath Mounted
Colour / Finish
Gun Metal

Waste specification

Type
Bath Filler & Overflow
Slotted or Unslotted
Slotted
Connection
Threaded Nut
Function
Clicker
Length of Overflow Hose (mm)
600

Tap / Shower specification

WRAS Approved
No
TMV Approved
0
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5.0
Flexible Tails Included
0
Number of tap holes required
0
Handle Type
Lever
Swivel Spout
0
Inlet Connection
0
Outlet Connection
0
Tap Hole Diameter (mm)
0
Tap Type description
Manual Mixer
Includes Waste
0
Valve / Cartridge Type
0
Cartridge Spare code
0

Flow Rates

0.2bar (l/min)
3.2
0.5bar (l/min)
7
1bar (l/min)
12
2bar (l/min)
17.7
3bar (l/min)
21.3

Product Transportation

Barcode: 5060964936000
Country of origin: CH
Commodity code: 8481801190

Product Measurements

Product Weight (KG): 0.435

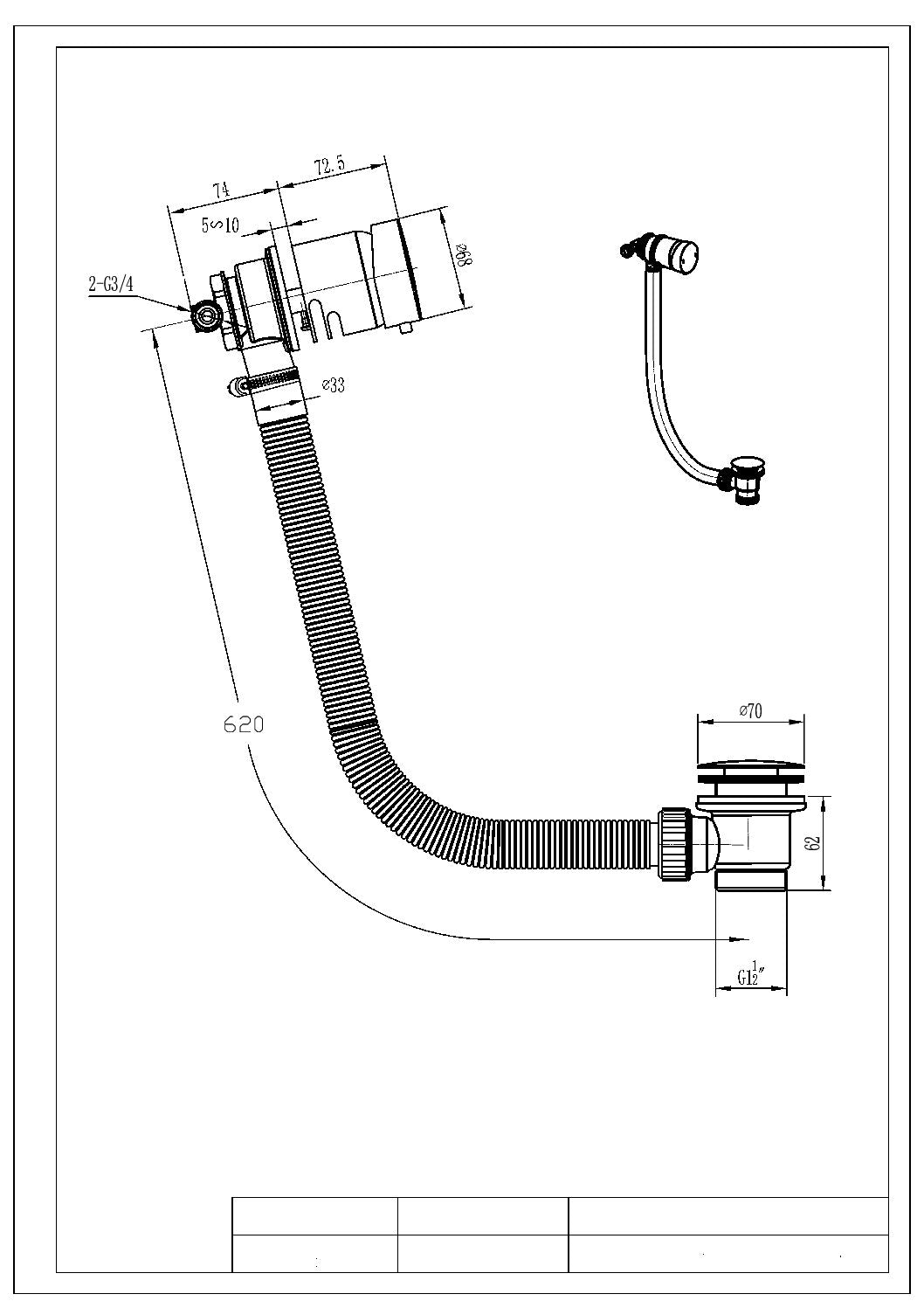

Product Width (mm): See Line Drawing
Product Height (mm):
Product Depth (mm):
Product Length (mm):

Primary Packed Measurements

Packaged Weight: 0.55
Packed Length: 0.024
Packed Width: 135
Packed Height: 10

Compliance DOP

HBDOC034 , HBDOC035
