• Berkeley Radiator
1 1

BURLINGTON

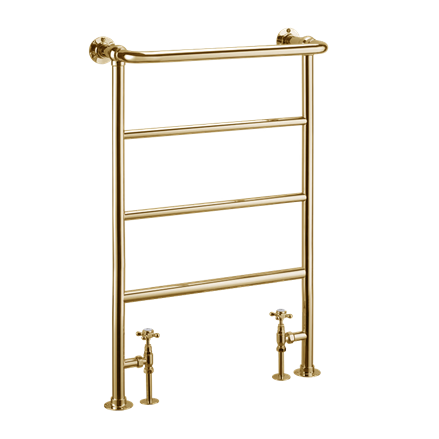

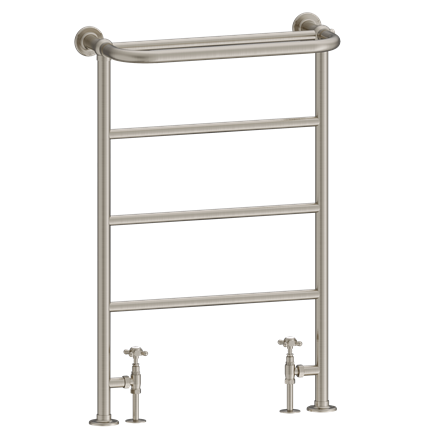

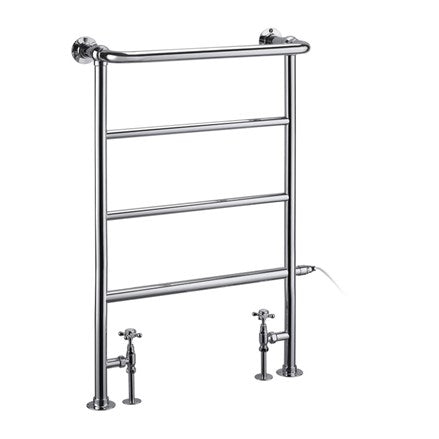

Berkeley Radiator

Berkeley Radiator

R4CHR

£639.00 GBP
£639.00 GBP
Sale Sold out
Tax included.
Finish
tick5 year guarantee*
  • 1 x Berkeley - chrome (R4CHR) (Previous code: R4 CHR)

    • Type

    T = 50°c Watts

    T = 55°c Watts

    T = 60°c Watts

    BTU's

    DM3

    Trafalgar

    		 475 540 600 2047 7.2

    Bloomsbury

    		 356 400 445 1518 5.0

    Vincent

    		 219 250 280 955 2.9

    Berkeley

    		 180 210 240 819 2.4

    Cleaver

    		 164 190 210 717 2.2

    Strand

    		 218 250 280 955 2.4

    Chaplin

    		 235 268 300 1024 3.4
    Maximum capacity when using a heating element is 90% of full capacity.
    Please consult the installation guide for each model.
    Finish Chrome
    Material Steel
    Length 235mm
    Width 642mm
    Height 950mm
    Weight 5.5kg
    Compliance BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
    Additional Information
    • Diameter of tubes is 32mm.
    • Output:819 BTUs/180 watts (³T=50)
    • For technical information on the summer heating kit please refer to the summer heating kit section
    • Distance from wall to the rail is 110mm.
    • Fill the radiator approximately 90% (2.2L) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system)
    • Includes all brackets and fixings. High quality chrome plated finish.
    • Valves are required. These are not included. Designed to be plumbed into your central heating system.
    • Operating pressure up to 8 bar.(Certified by BEN N.L) Maximum working temperature:95
