• Chaplin Radiator
1 1

BURLINGTON

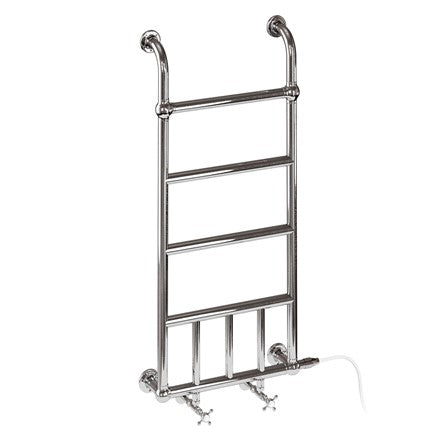

Chaplin Radiator

Chaplin Radiator

R12CHR

£824.00 GBP
£824.00 GBP
Sale Sold out
Tax included.
tick5 year guarantee*
  • 1 x Chaplin - chrome (R12CHR) (Previous code: R12 CHR)
  • 1 x Angled wall mounted rad valve - chrome (R6CHR) (Previous code: R6 CHR)

    • Type

    T = 50°c Watts

    T = 55°c Watts

    T = 60°c Watts

    BTU's

    DM3

    Trafalgar

    		 475 540 600 2047 7.2

    Bloomsbury

    		 356 400 445 1518 5.0

    Vincent

    		 219 250 280 955 2.9

    Berkeley

    		 180 210 240 819 2.4

    Cleaver

    		 164 190 210 717 2.2

    Strand

    		 218 250 280 955 2.4

    Chaplin

    		 235 268 300 1024 3.4
    Maximum capacity when using a heating element is 90% of full capacity.
    Please consult the installation guide for each model.
    Finish Chrome
    Material Steel
    Length 126mm
    Width 542mm
    Height 1142mm
    Weight 16.5kg
    Compliance BS EN442-1:2003 Specification for radiators and convectors. Technical specifications and requirements BS EN442-2:2003 Specification for radiators and convectors. Test methods and rating Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni-Cr
    Additional Information
    • Diameter of tubes is 32mm.
    • Output:1024 BTUs/235 watts(³T=50)
    • For technical information on the summer heating kit please refer to the summer heating kit sectio
    • Distance from wall to the rail is 94mm
    • Includes all brackets and fixings. Valves are required. These are not included.
    • Operating pressure up to 8 bar.(Certified by BEN N.L) Maximum working temperature:70
    • 234mm plumping pipe centers
    Additional Infomation
    • Fill the radiator approximately 90% (6.5) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) Includes all brackets and fixings.
