• Core Brushed Bronze Round Handle, Handset & Mounting Bracket
  • Core Brushed Bronze Round Handle, Handset & Mounting Bracket
1 2

SCUDO

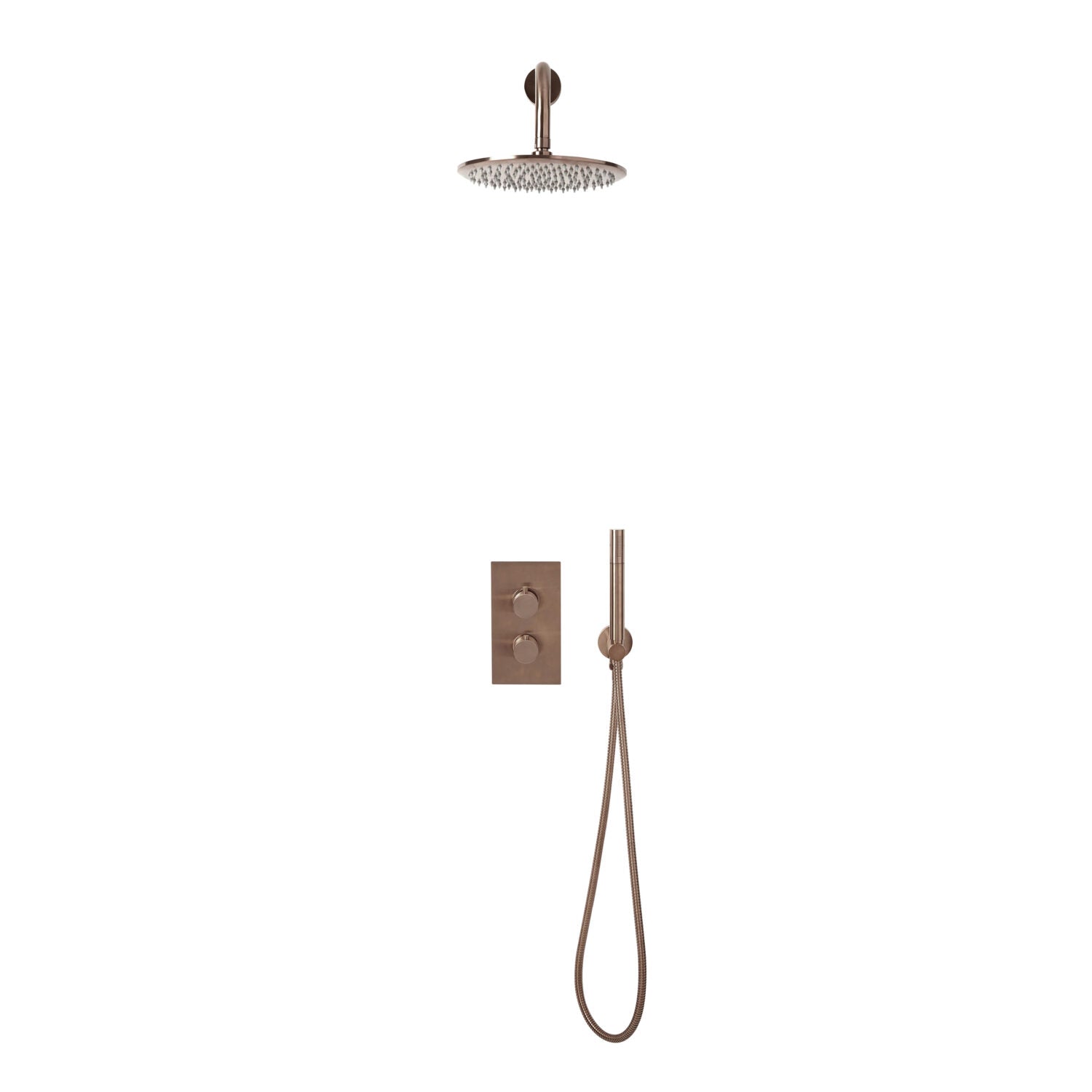

Core Brushed Bronze Round Handle, Handset & Mounting Bracket

Core Brushed Bronze Round Handle, Handset & Mounting Bracket

NU-043

£655.00 GBP
£655.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

Supplied with 2 handle options – Diamond cross hatch detail or a sleek smooth apperance

General Specification

Construction Material
Brass /Stainless steel 304 alloy
Installation type
Wall Mounted
Colour / Finish
Chrome

Tap / Shower specification

WRAS Approved
Yes
WRAS Expiry date
31/12/2027
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
No
Number of tap holes required
0
Handle Type
Lever
Swivel Spout
N/a
Inlet Connection
1/2 BSP
Outlet Connection
1/2 BSP handset
Tap Hole Diameter (mm)
N/a
Tap Type description
Concealed Thermostatic Mixer
Includes Waste
No
Valve / Cartridge Type
Themostatic Cartridge
Cartridge Spare code
N/a

Flow Rates

0.2bar (l/min)
5.6
0.5bar (l/min)
8.8
1bar (l/min)
13.8
2bar (l/min)
20.8
3bar (l/min)
25.7

Product Transportation

Barcode: 5060964935423
Country of origin: China
Commodity code: 7324900000

Product Measurement’s

Product Weight (KG): 4.435

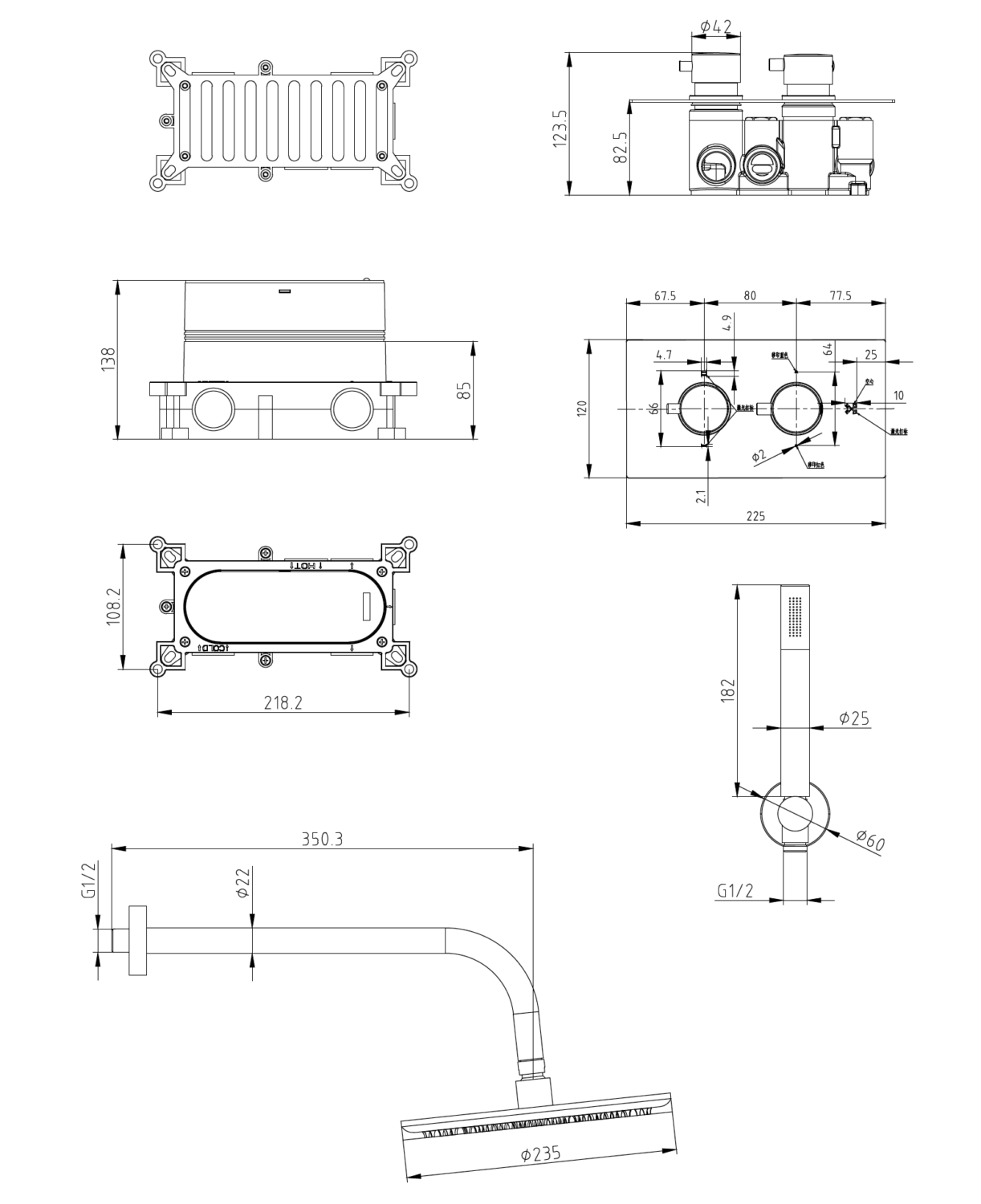

Product Dimension: See Line Drawing

Primary Packed Measurements

Packaged Weight: 6
Packed Length: 720
Packed Width: 275
Packed Height: 175
