SCUDO

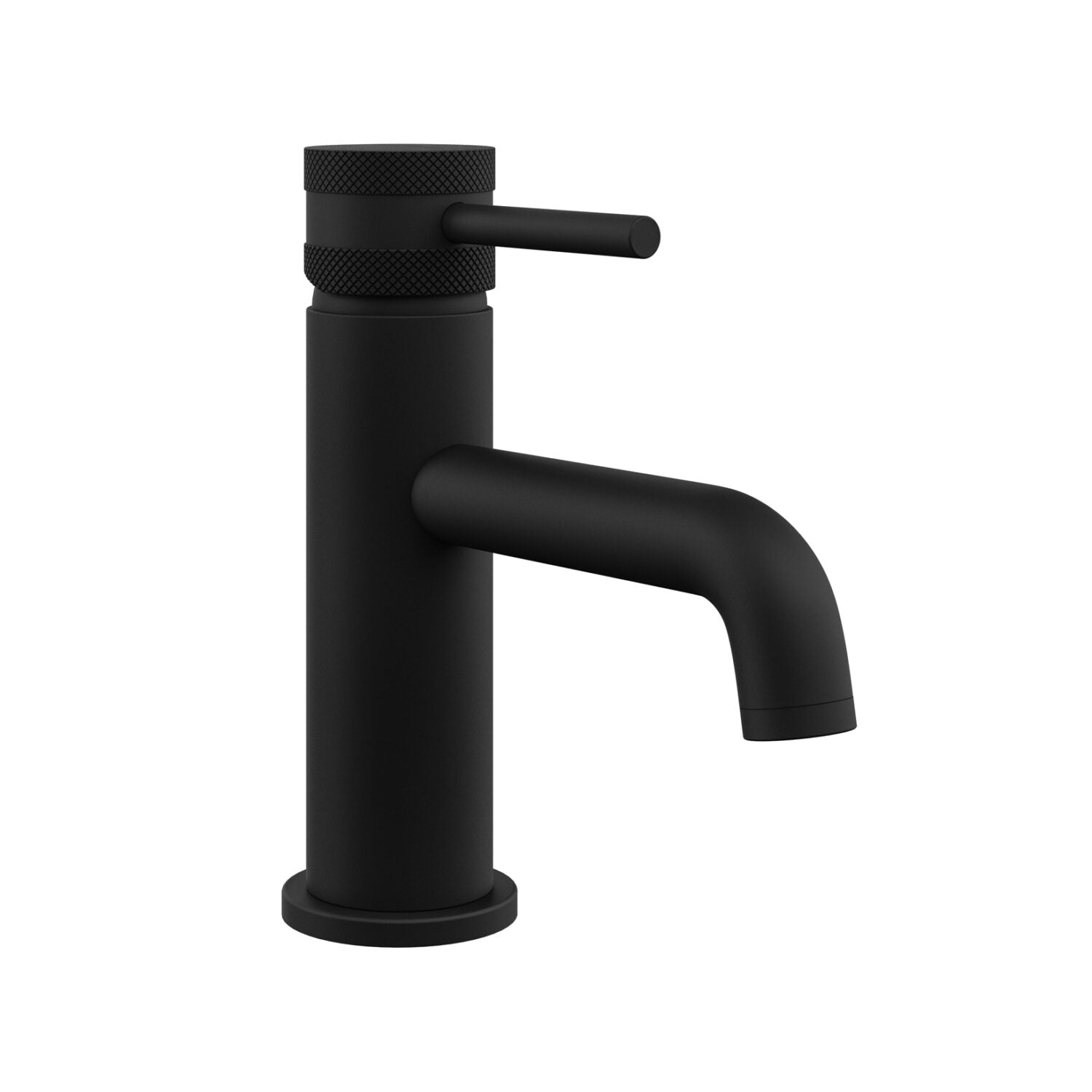

Core Mono Basin Mixer Black

Core Mono Basin Mixer Black

NU-002

£226.00 GBP
£226.00 GBP
Sale Sold out
Tax included.
Material
Installation

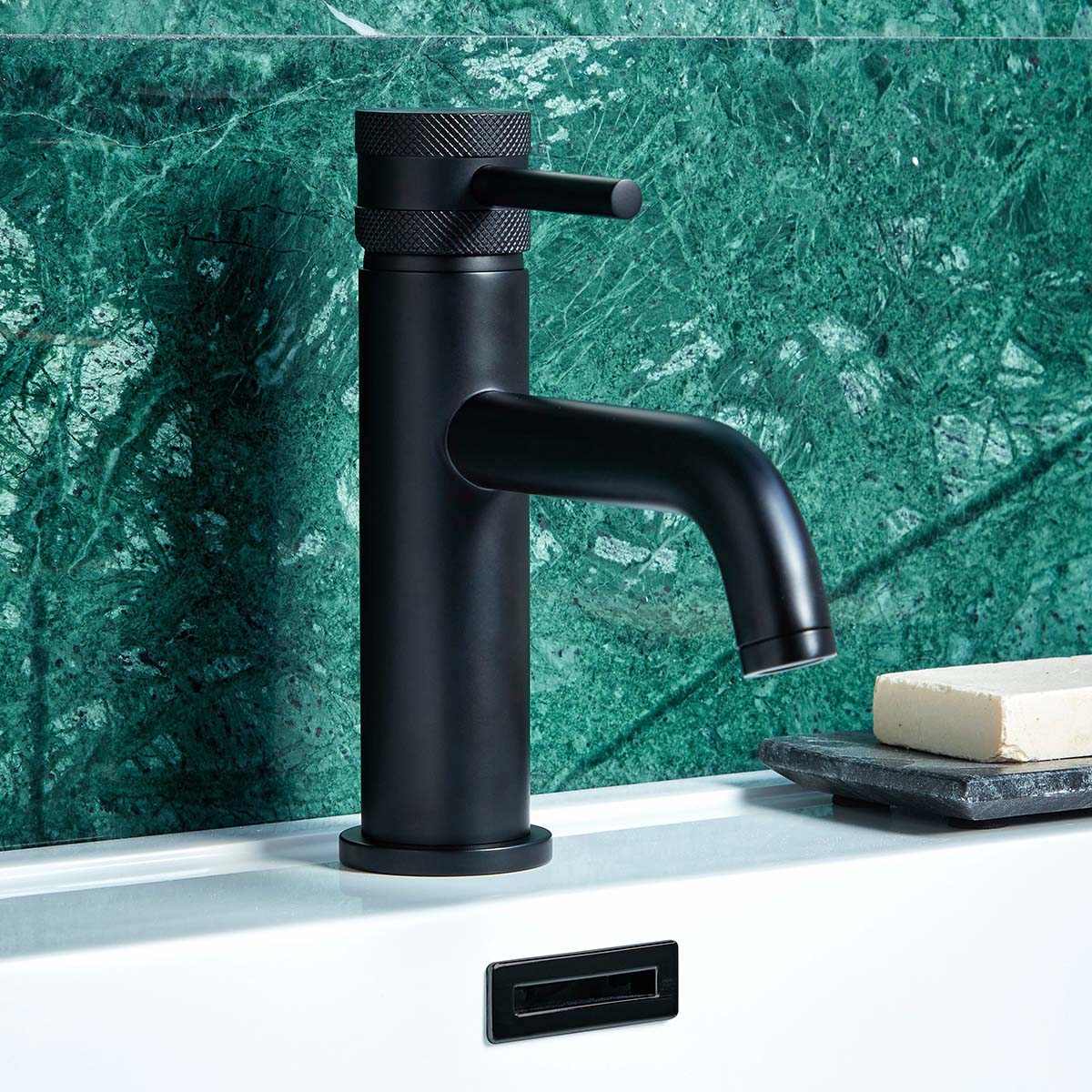

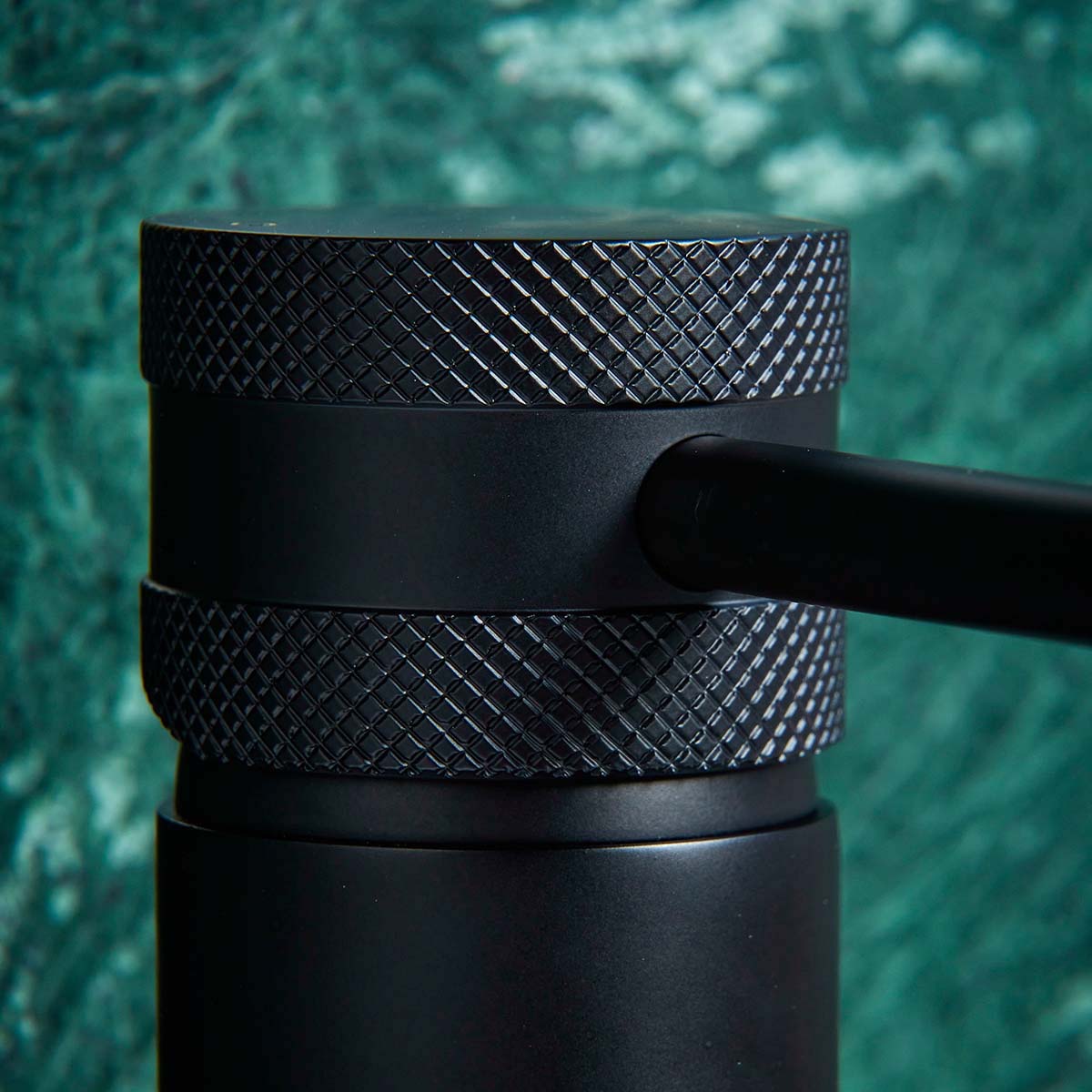

This bold stylish Core mono basin mixer in matt black will be a welcome addition to any modern bathroom design. Core is supplied with two handle options giving you the flexibility to change the overall look with a diamond cross hatch detail or a sleek smooth appearance.

Matte black finish
Operating 0.5 bar pressure
Deck mounted
Lever handle
Round design
Various matching taps available
WRAS approved

General Specification

Construction Material
Brass
Installation type
Deck Mounted
Colour / Finish
Brushed Brass

Tap / Shower specification

WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2" M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
35mm Cartridge
Cartridge Spare code
N/a

Flow Rates

0.2bar (l/min)
2.5
0.5bar (l/min)
4
1bar (l/min)
6
2bar (l/min)
8.5
3bar (l/min)
10.6

Product Transportation

Barcode: 5060766124438
Country of origin: CH
Commodity code: 8481809000

Product Measurements

Product Weight (KG): 1.62

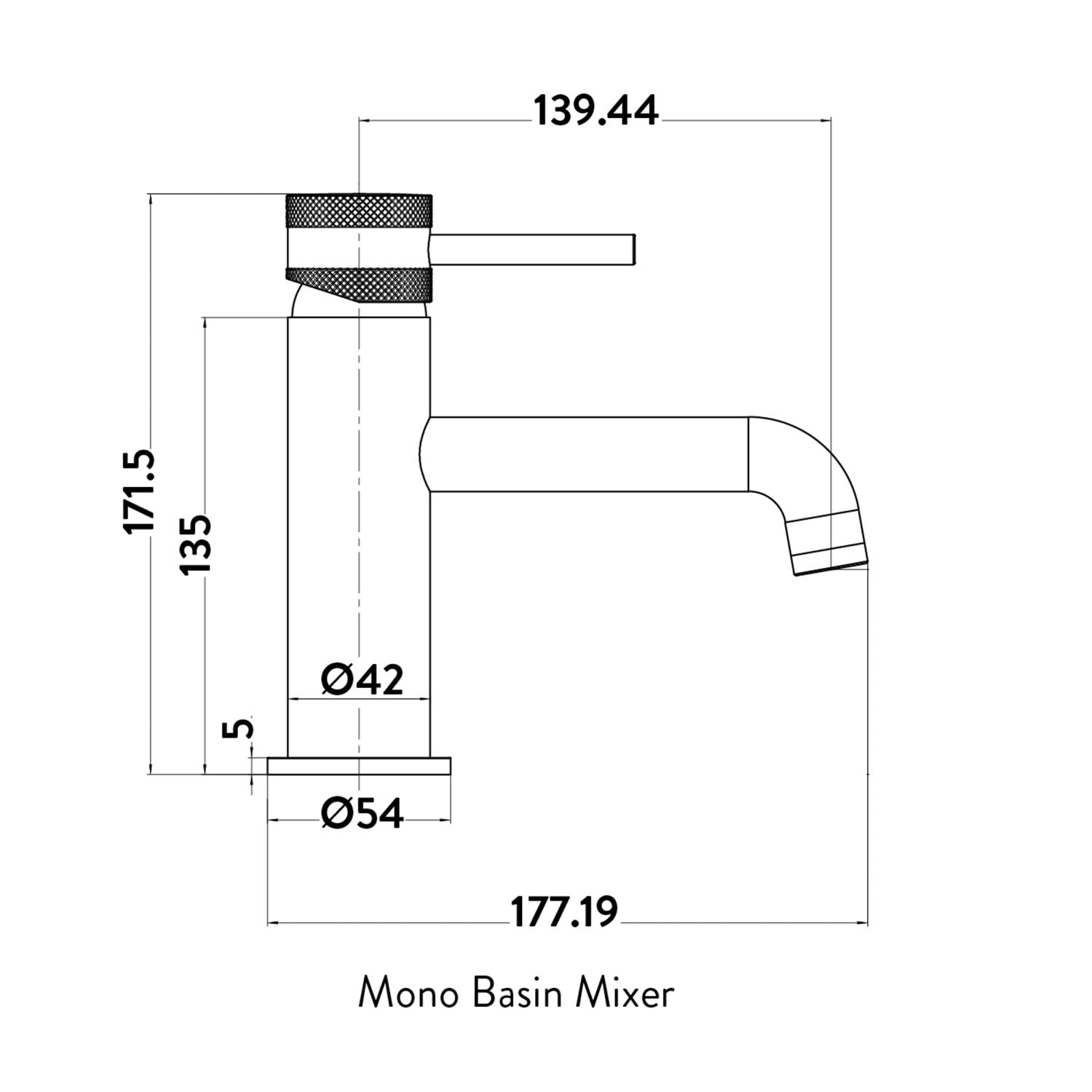

Product Width (mm): See Line Drawing
Product Height (mm): –
Product Depth (mm): –
Product Length (mm): –

Primary Packed Measurements

Packaged Weight: 1.7
Packed Length: 80
Packed Width: 420
Packed Height: 214
