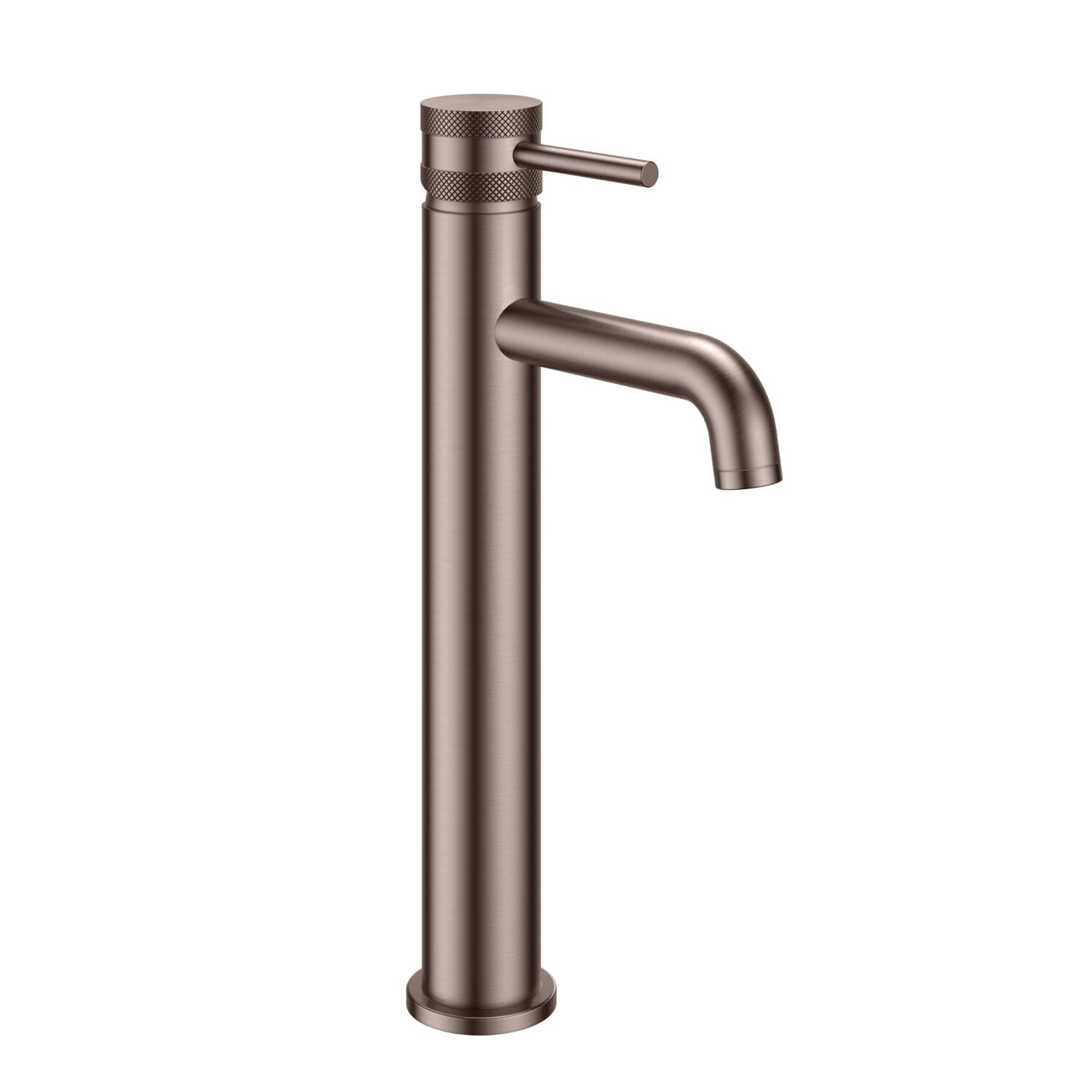

Core Tall Mono Basin Mixer Brushed Bronze

Core Tall Mono Basin Mixer Brushed Bronze

NU-039

£263.00 GBP
£263.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

Our collection of Core taps offers a minimalist design that will be a welcome addition to any modern bathroom design. Core is supplied with two handle options giving you the flexibility to change to overall look with a diamond cross hatch detail or a sleek smooth appearance.

With a broad range of options, Core is also available in chrome, matte black, gunmetal, and brushed brass. Most of this collection is WRAS approved to meet the strictest standards for use in the UK.

General Specification

Construction Material
Brass /Stainless steel 304 alloy
Installation type
Worktop Fixed
Colour / Finish
Brushed Bronze

Tap / Shower specification

WRAS Approved
Yes
WRAS Expiry Date
30/9/2027
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2" M10
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
No
Valve / Cartridge Type
35mm Cartridge
Cartridge Spare code
N/a

Flow Rates

0.2bar (l/min)
2.7
0.5bar (l/min)
5
1bar (l/min)
6.6
2bar (l/min)
9.2
3bar (l/min)
11.4

Product Transportation

Barcode: 5060964935386
Country of origin: CH
Commodity code: 8481809000

Product Measurements

Product Weight (KG): 1.642

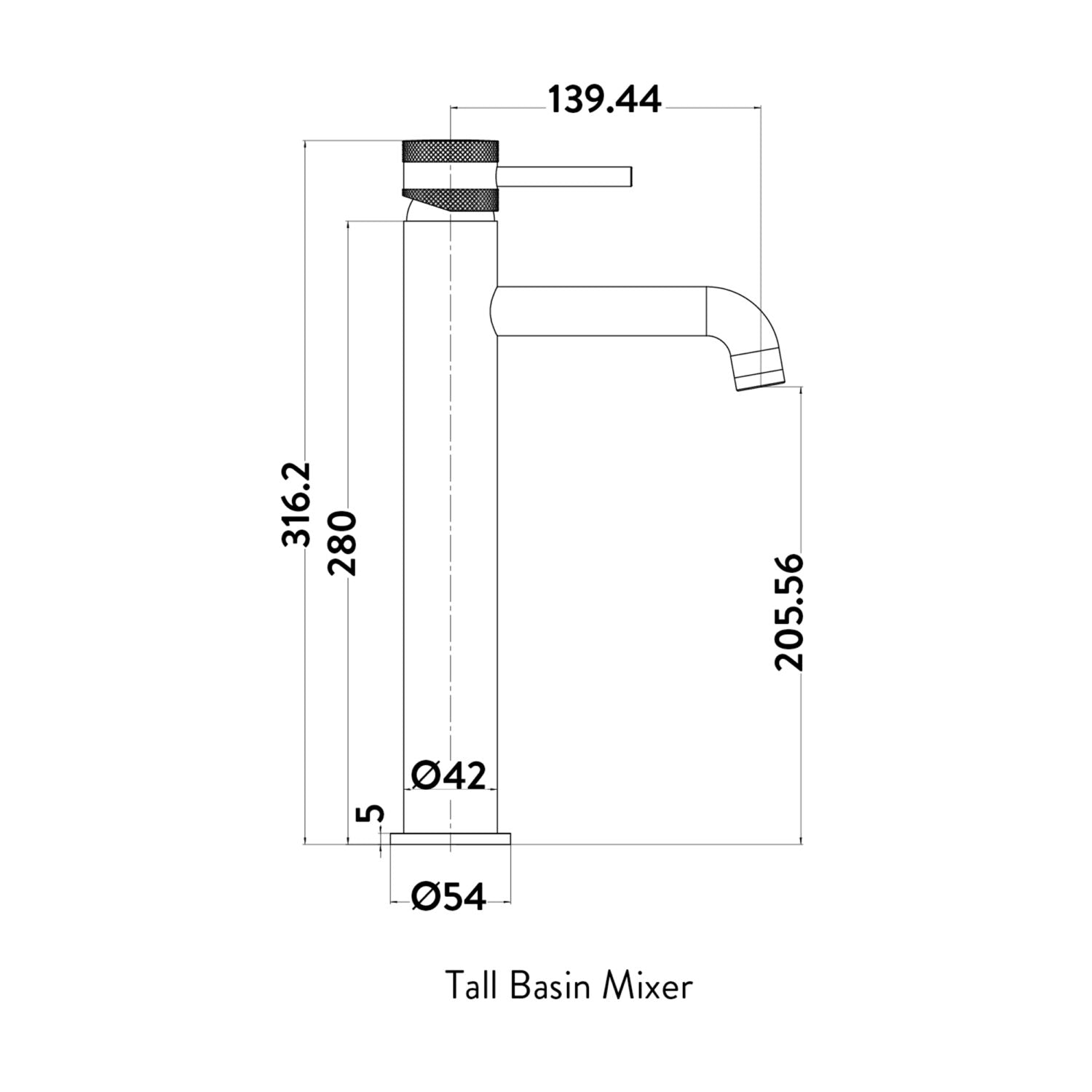

Product Width (mm): See Line Drawings
Product Height (mm): –
Product Depth (mm): –
Product Length (mm): –

Primary Packed Measurements

Packaged Weight: 1.929
Packed Length: 390
Packed Width: 200
Packed Height: 60
