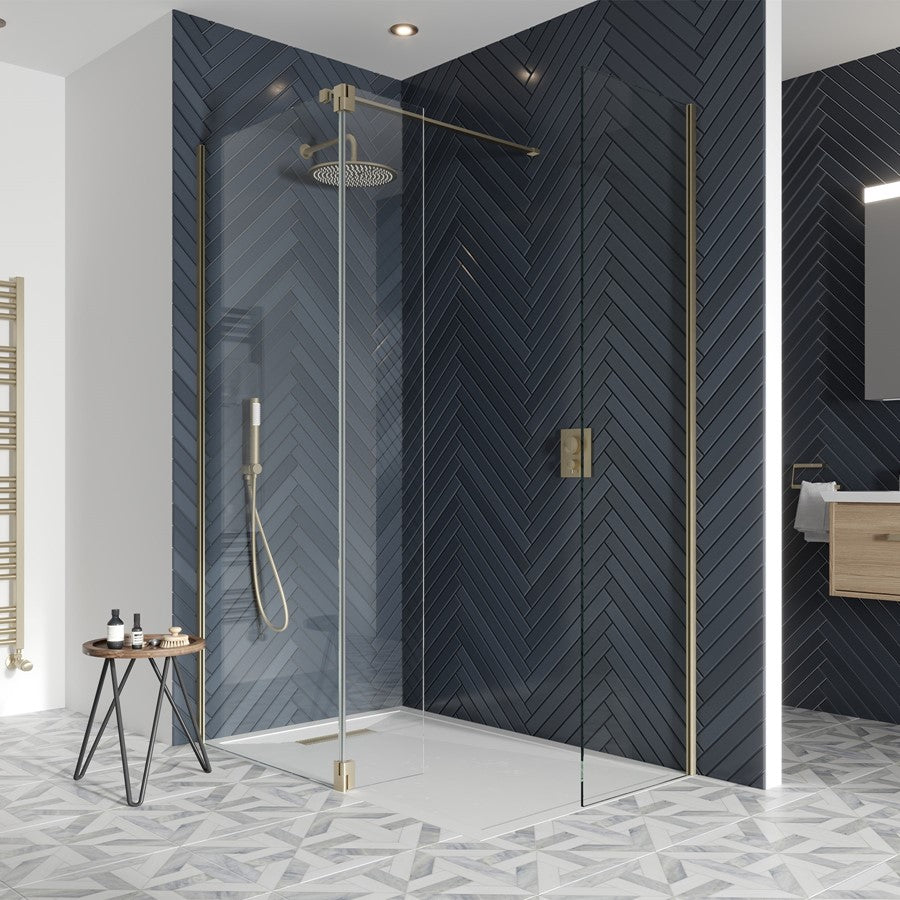

Name: Gallery 10 Corner with Hinged Deflector - Brushed Brass, Brushed Brass
Brand: CROSSWATER
SKU: GRPROFILEF, GRPROFILEF-GR030010CF_V2-GR030010CF_V2 (second panel)-GRBRACEF-GRDEFLEC300-GRDEFHINGEF-GRPROFILET, GRPROFILET-GR140010CF_V2-GR050010CF_V2 (second panel)-GRBRACEF-GRDEFLEC300-GRDEFHINGEF-1
Price: 1607.0 GBP
Availability: InStock

GRPROFILEF, GRPROFILEF-GR030010CF_V2-GR030010CF_V2 (second panel)-GRBRACEF-GRDEFLEC300-GRDEFHINGEF-GRPROFILET, GRPROFILET-GR140010CF_V2-GR050010CF_V2 (second panel)-GRBRACEF-GRDEFLEC300-GRDEFHINGEF-1

Glass to Wall Bracing Bar: Glass to Wall Bracing Bar - Brushed Brass

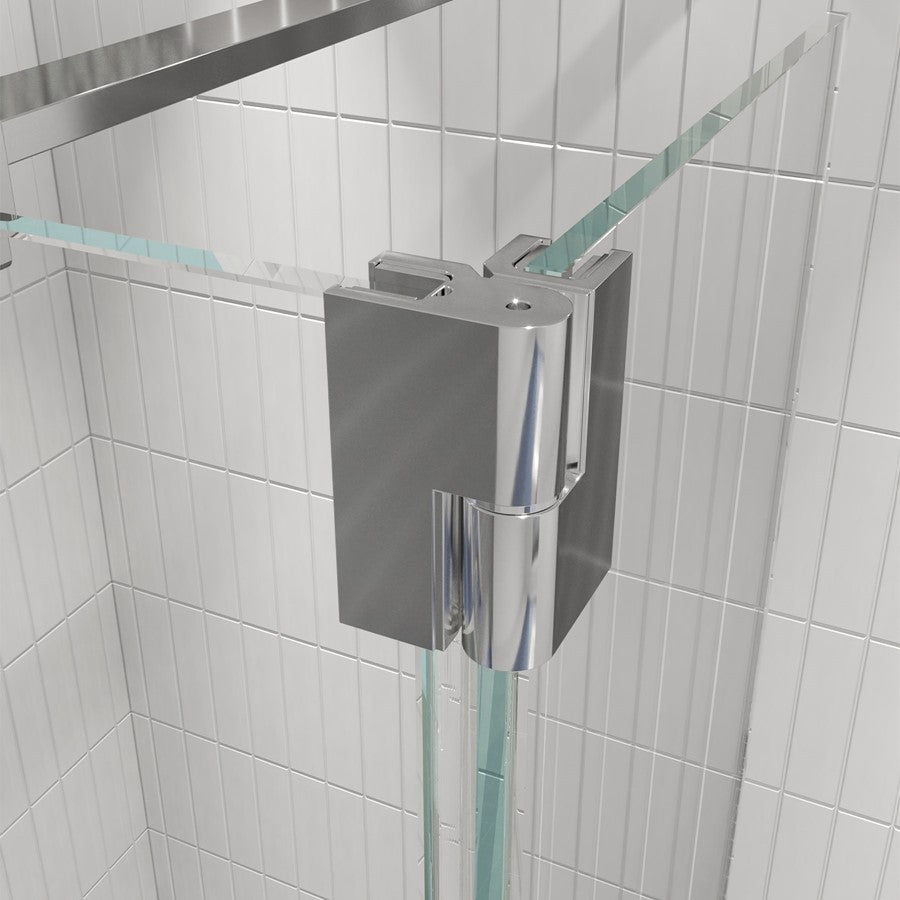

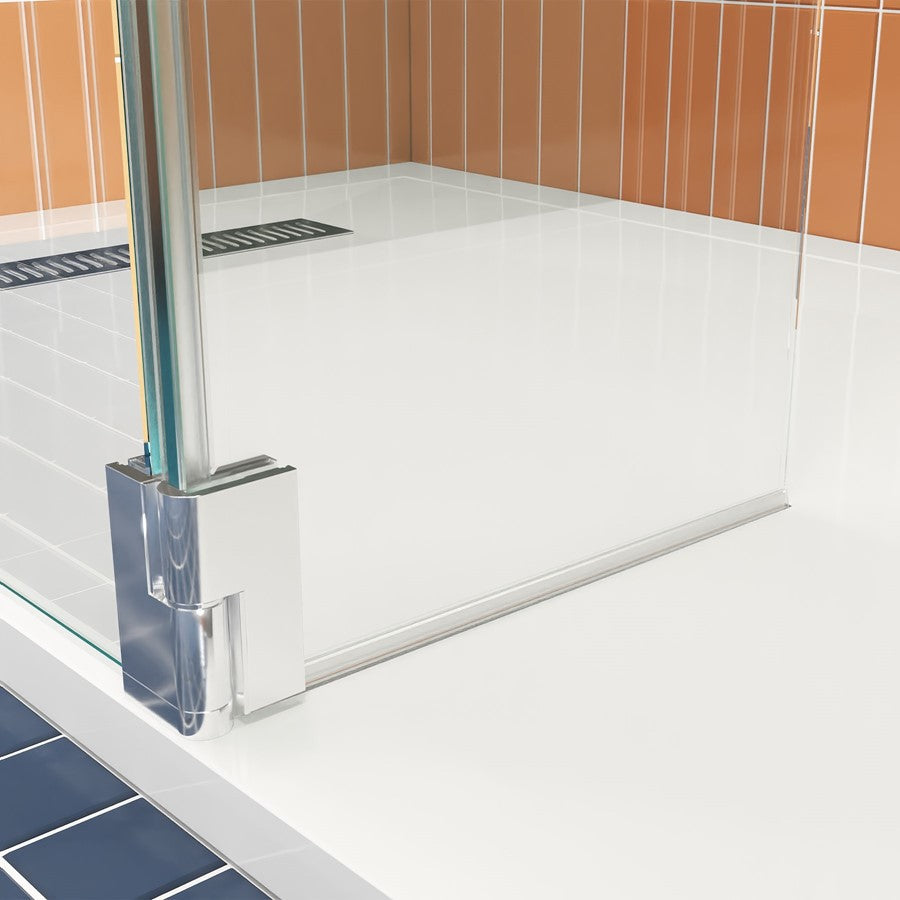

Deflector Panel 180° Hinges (Pair): Deflector Panel 180° Hinges (Pair) - Brushed Brass

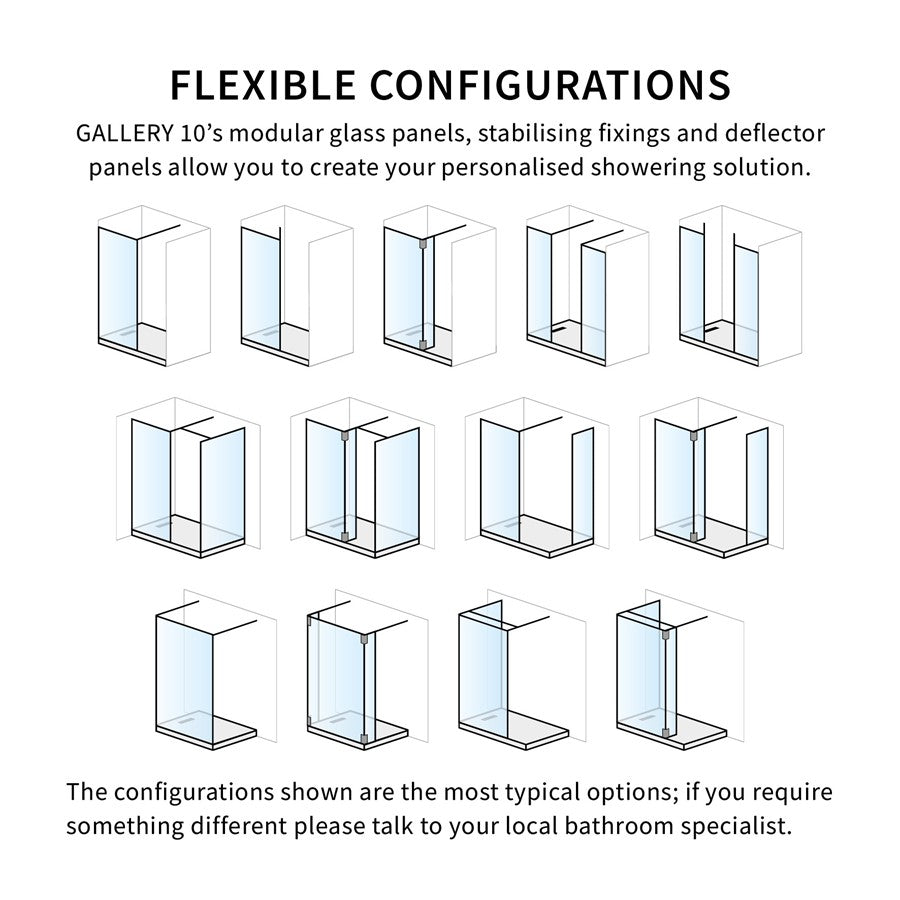

Expertly curated, our luxury Gallery 10 range offers 10mm toughened safety glass, profiles and stabilising options in an assortment of indulgent colours with diverse layout options, giving you complete design flexibility to create your personalised showering solution. The Gallery 10 range is suitable for either a shower tray or tiled floor installation. Flexible configuration options are available, please see typical options here.

Please see our brochure for full details and assistance with designing your space.

Alternatively, you can find your local retailer for expert advice.

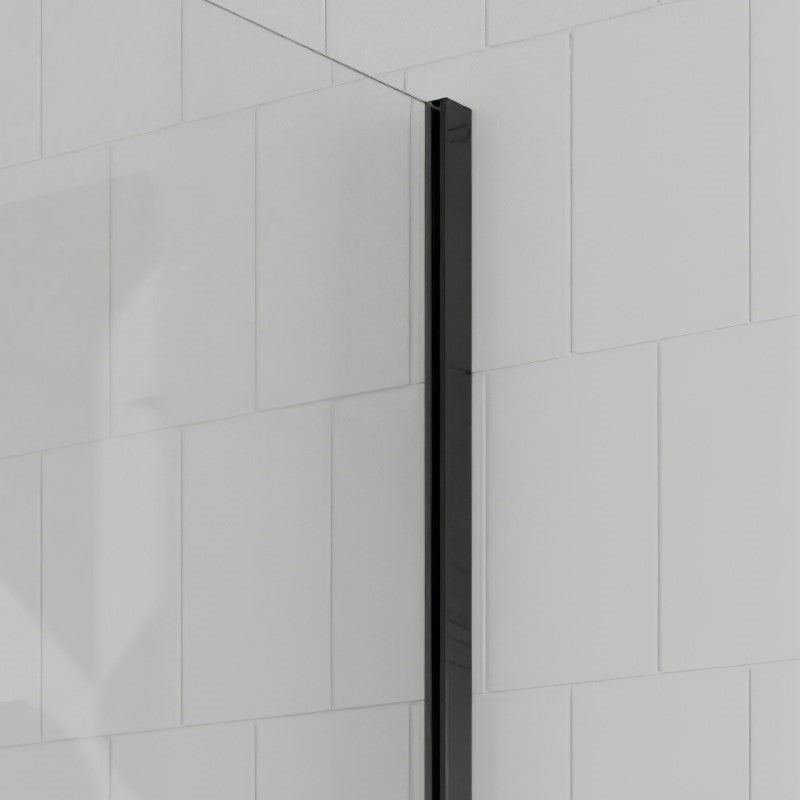

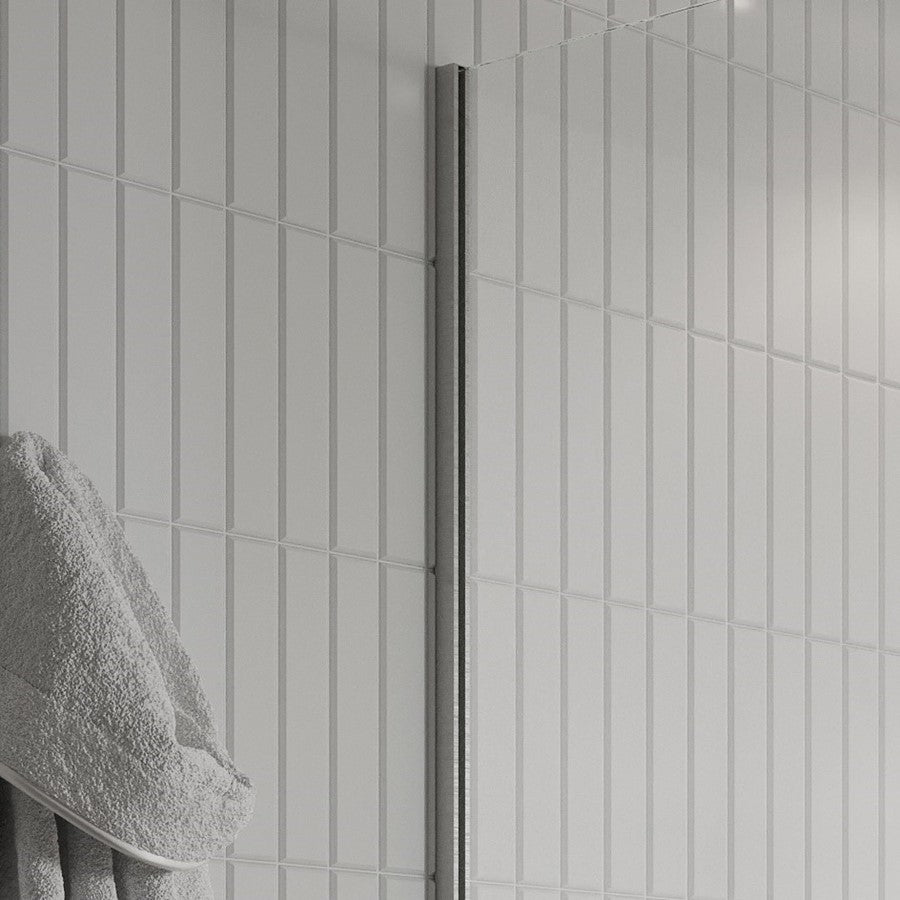

Wall Profiles

Finish	Brushed Brass
Adjustment	15mm adjustment for easy fitting
Height	To top of the Profile 2000mm
Weight	6.2kg
Features	304 stainless steel Four wall fitting points Clear PVC Squeeze gasket for easy adjustment and stability Profile cover cap

10mm Toughened Glass Panel

Crosswater Clear	As standard
Guarantee	Lifetime Guarantee
Glass Thickness	10mm toughened safety glass
Height	To the top of the glass 1997mm
Width	255mm
Quality Approvals	BS EN 14428
Barcode	5055833671649
Weight	14kg
Product Notes	Max width without bracing 500mm
Features	Reversible panel Polished edge glass

10mm Toughened Glass Panel 2

Crosswater Clear	As standard
Glass Thickness	10mm toughened safety glass
Height	To the top of the glass 1997mm
Quality Approvals	BS EN 14428
Width	255mm
Weight	14kg
Product Notes	Max width without bracing 500mm
Features	Reversible panel Polished edge glass

Hinged Deflector Glass with Seal

Crosswater Clear	As standard
Guarantee	Lifetime Guarantee
Glass Thickness	8mm toughened safety glass
Height	To the top of the glass 1990mm
Width	300mm
Quality Approvals	BS EN 14428
Barcode	5055833661893
Weight	14kg
Features	Reversible design Polished edge glass Clear PVC bubble seal for deflector panel 1845mm high Clear PVC vertical fixed panel glass seal 1845mm high Clear PVC bottom seal 311mm Requires 180° deflector hinge GRDEFHINGExx
