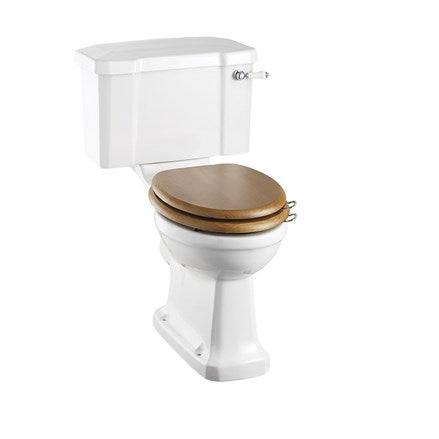

Regal CC WC with 520 Lever Cistern

Lifetime guarantee*

1 x Regal close coupled pan (P12)

1 x Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings) (C1)

Finish	White
Depth	720mm
Material	Vitreous China
Width	520mm
Height	1490mm
Weight	38.1kg
Height Type	Standard
Rimless	No
Flush Type	Lever
Trap Option	P-trap
Compliance	BS EN 997:2012 WC pans and WC suites with integral trap BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern. Connecting dimensions
Additional Information	Regal Height pan P12 ( floor to pan rim height 48cm ) is 8cm taller than a standard pan. Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Metal connection bracket. Supplied with floor fixings. Recommended to be used with cistern tank isolation valve W25 Does not include toilet seat, please add on your choice of seat
