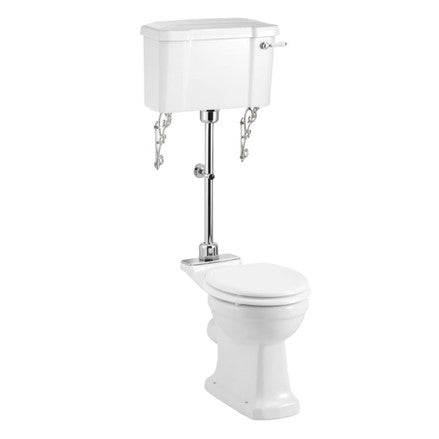

Rimless Medium Level WC with 520 Lever Cistern

Lifetime guarantee*

1 x Burlington Rimless Close Coupled Pan (P20)

1 x Close Coupled / Low level cistern 51cm Ceramic Lever (incl. bottom entry cistern fittings) (C1)

1 x Medium level flush pipe kit including medium ornate brackets in chrome (T33CHR) (Previous code: T33 CHR)

Finish	White
Material	Vitreous China
Length	730mm
Width	520mm
Height	1420mm
Height Type	Standard
Rimless	Yes
Trap Option	P-trap
Additional Information	Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C1/C3/C24, including back entry inlet valve with flexible hose and plug Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. P trap standard height pan - height from floor to pan rim is 40cm. Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Supplied with floor fixings. Recommended to be used with cistern tank isolation valve W25 Water Inlet valve hole is located on the base of cistern tank on the right hand side The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards)
