SCUDO

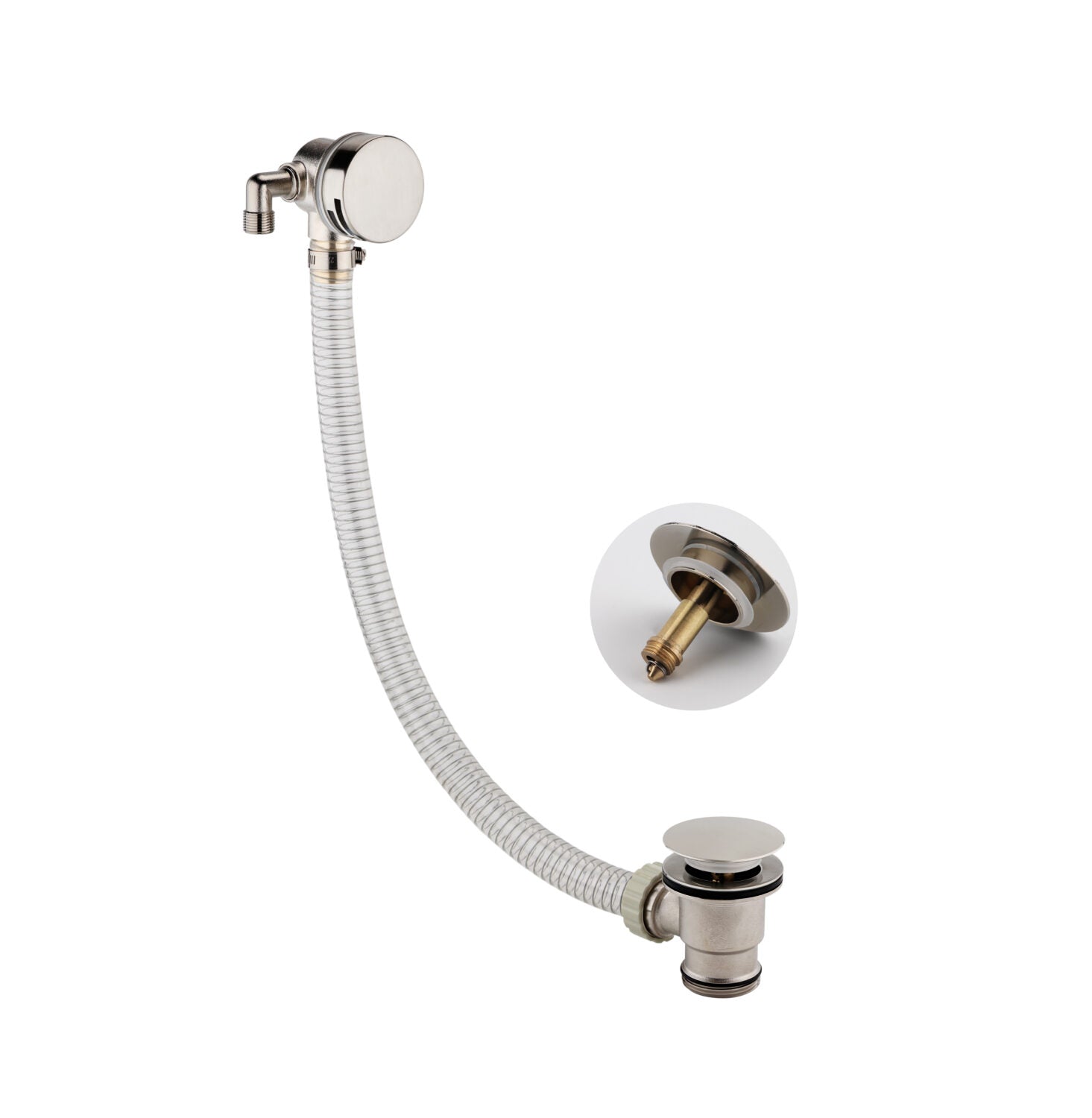

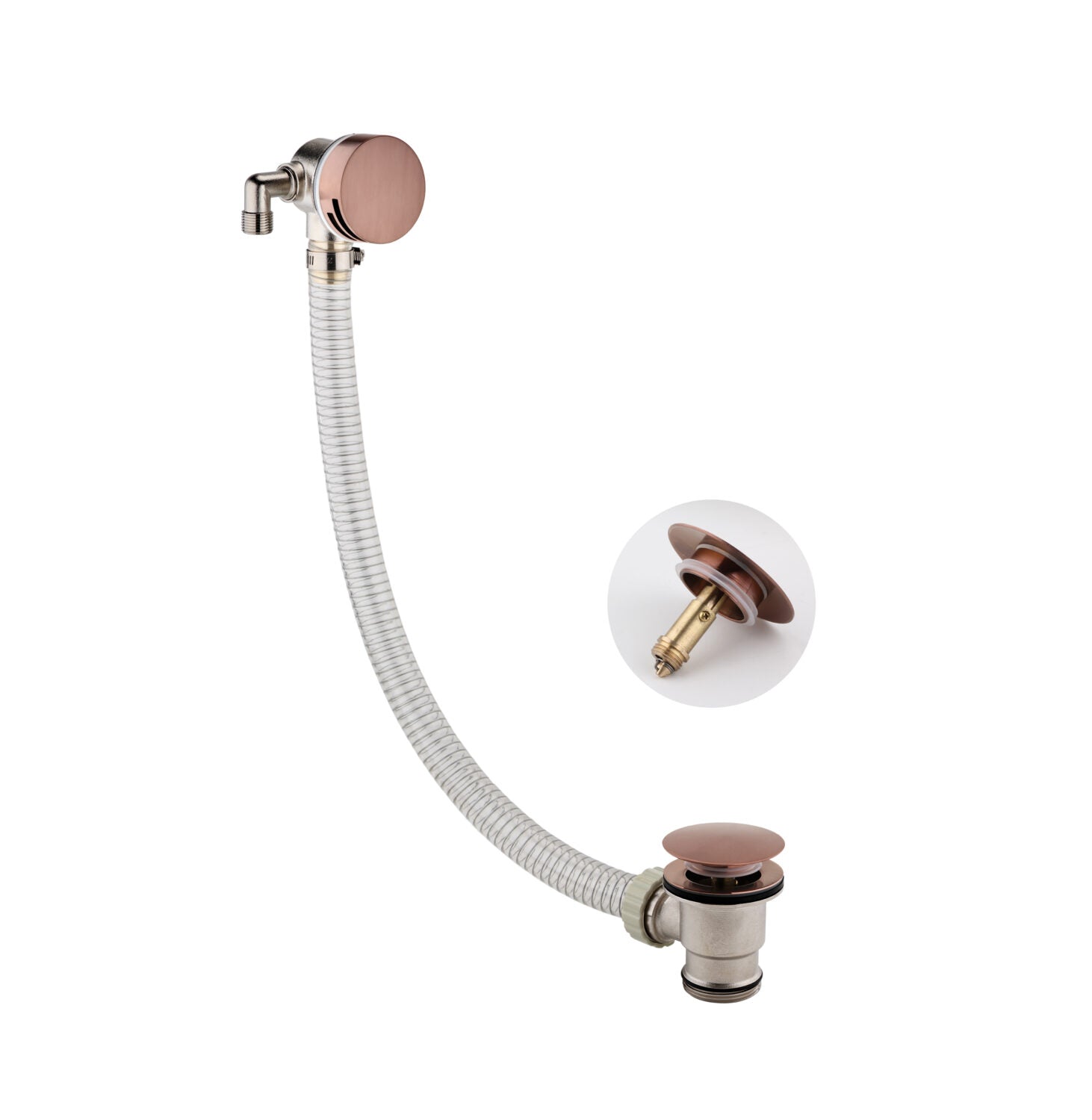

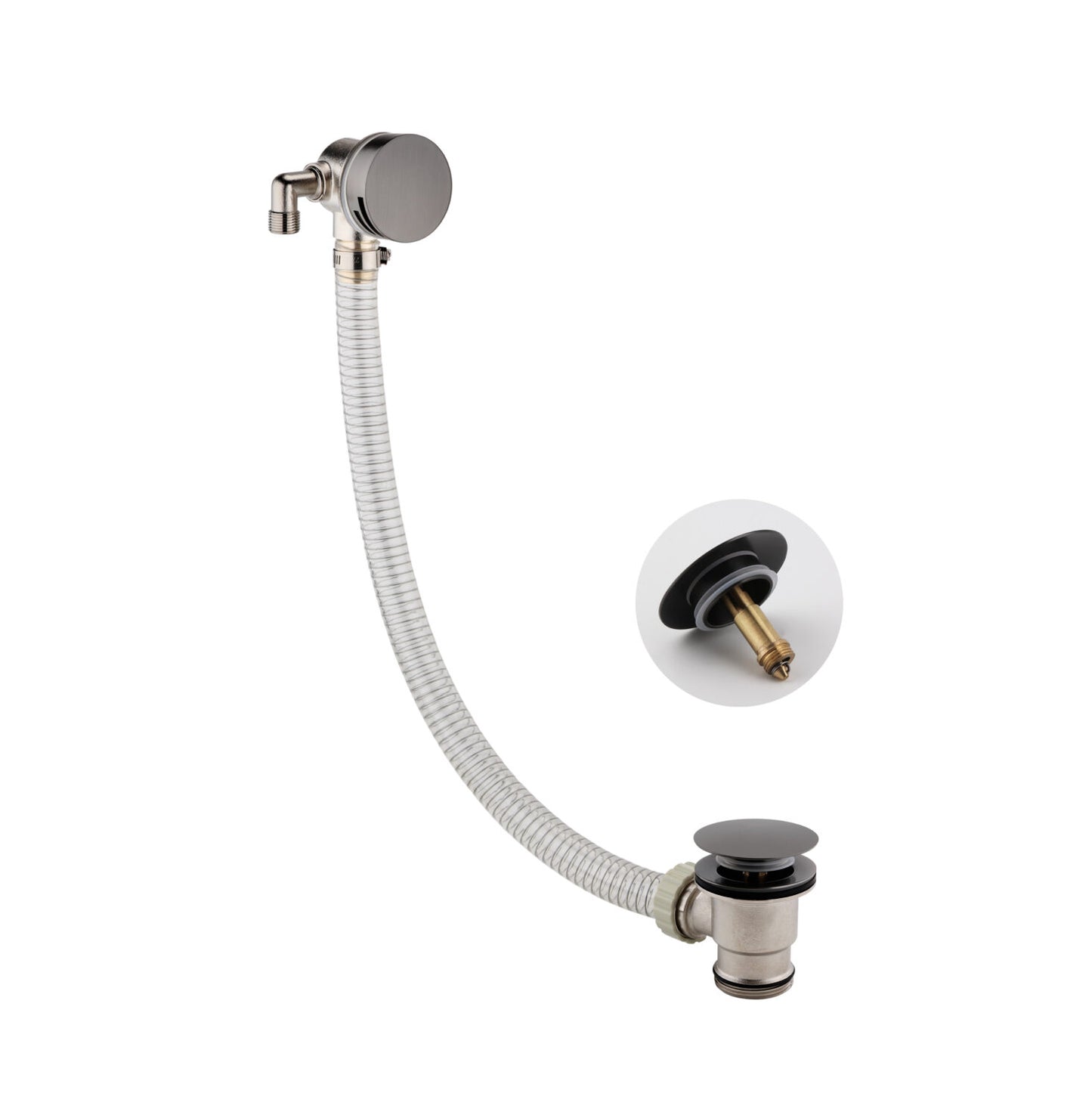

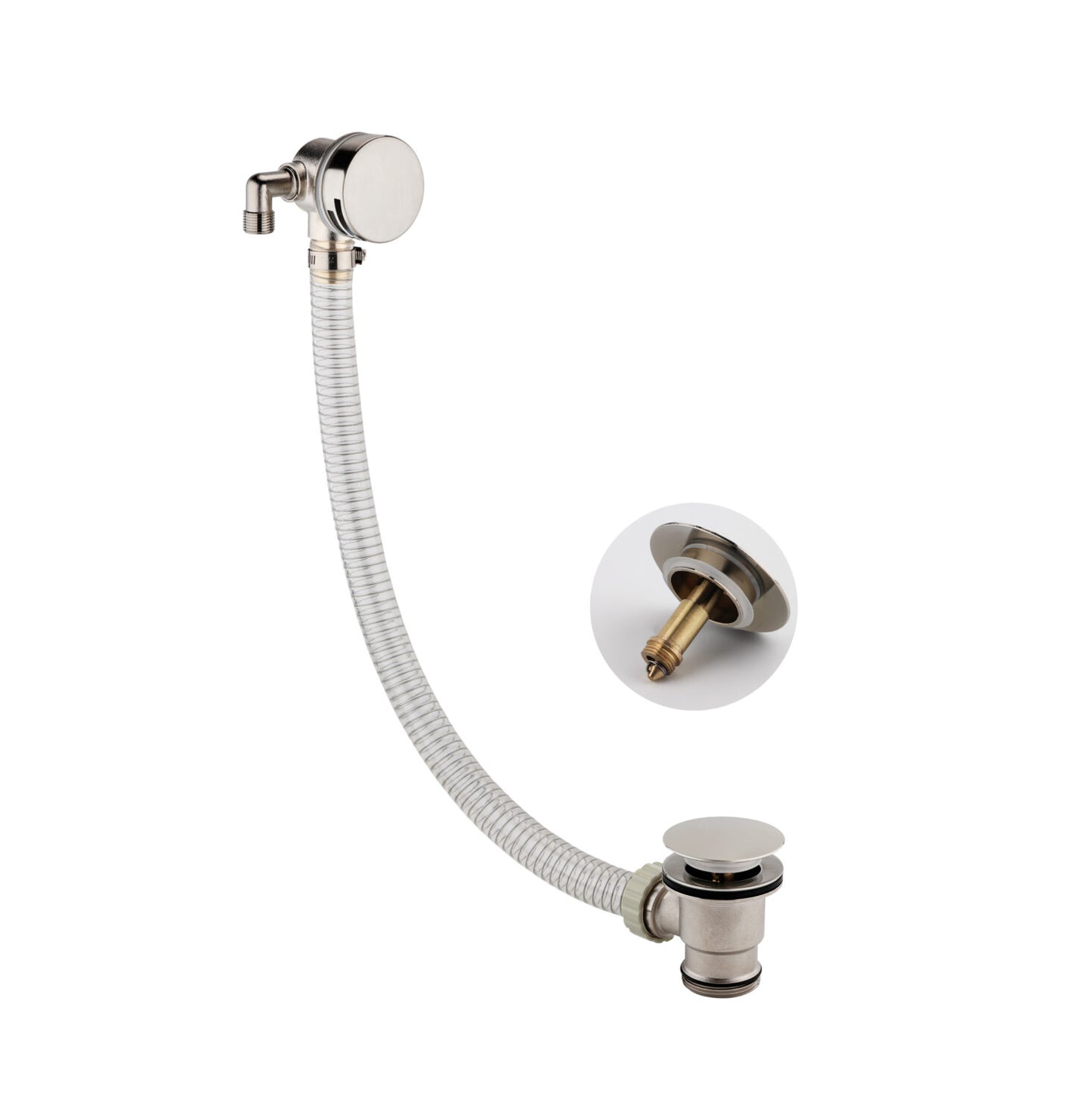

Round Bath Filler and Overflow

Round Bath Filler and Overflow

WASTE118BB

£175.00 GBP
£175.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

General Specification

Construction Material
Brass, Stainless Steel, Plastic
Installation type
Bath Mounted

Waste specification

Type
Bath Filler & Overflow
Slotted or Unslotted
Slotted
Connection
Threaded Nut
Function
Clicker
Length of Overflow Hose (mm)
600

Tap / Shower specification

WRAS Approved
Yes
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5.0
Inlet Connection
1/2 BSP
Tap Type description
Filler Outlet
Includes Waste
Yes

Flow Rates

0.2bar (l/min)
3.2
0.5bar (l/min)
7
1bar (l/min)
12
2bar (l/min)
17.7
3bar (l/min)
21.3

Product Transportation

Barcode:
Bronze: 5060991200884
Nickel: 5060991200877
Gunmetal: 5060991200860
Country of origin: China
Commodity code: 8481804090

Product Measurements

Product Weight (KG): 2.4

Primary Packed Measurements

Packaged Weight: 2.64
Packed Length: 100
Packed Width: 200
Packed Height: 325
