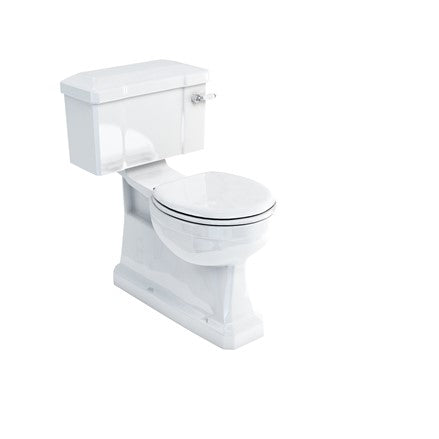

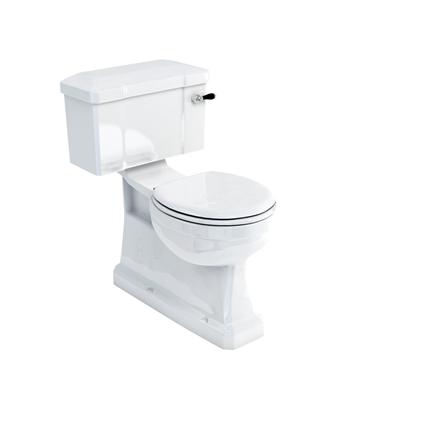

S Trap CC WC with 520 Rear Entry Lever Cistern

Lifetime guarantee*

1 x Burlington close coupled S trap pan for floor mounted outlet pipe (P18)

1 x Extended depth close coupled / low level cistern 52cm wide & ceramic lever (incl back entry cistern fittings) (C30)

Finish	White
Material	Vitreous China
Length	730mm
Width	520mm
Height	780mm
Weight	38.1kg
Height Type	Standard
Rimless	No
Flush Type	Lever
Trap Option	S-trap
Compliance	BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information	Supplied with floor fixings. Recommended to be used with cistern tank isolation valve W25 If the wall to soil pipe distance is 21cm, then use the combination of P18&C1/C2/C3/C4 The S trap P18 pan & C30 cistern combination should be used where the distance from the wall to the center of the soil pipe in the floor is 24cm The soil pipe is fully enclosed and not visible Water Inlet valve hole is located on the base of cistern tank on the right hand side Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). SP511 : Back entry kit for C30, including back entry inlet valve with flexible hose and plug Dual flush cistern fittings with ceramic lever on the right. Press lever down for 6 litre flush and up for 3 litre flush. Cistern connected to pan with internal bolts. Close coupled wc must be used with standard Burlington toilet seats
