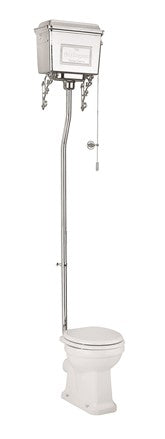

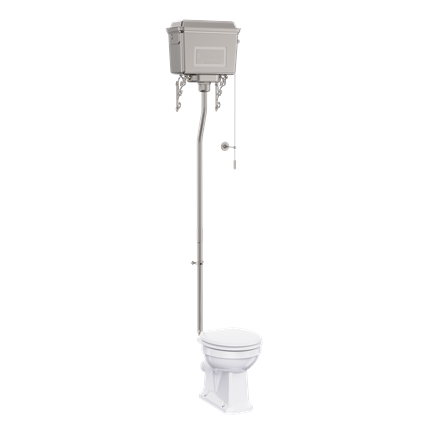

1 x High level flush pipe kit including lever, rigid pull rod, flush pipe, reverse screw cistern connector, stopper and ornate brackets (T30CHR) (Previous code: T30 CHR)
1 x Low/high level pan (P2)
1 x Chrome Aluminium High Level Cistern including cistern fittings (T70CHR) (Previous code: T70 CHR)
Turn your high level toilet into a traditional masterpiece with the Aluminium Cistern. Adding flourish to your bathroom design, this toilet cistern elevates your bathroom aesthetics from conventional to exemplary. Available in three beautiful traditional metallic finishes that perfectly match our brassware, showering and accessories, achieve a complete, coordinated design throughout your traditional bathroom.
With an insulated tank that prevents condensation, this cistern's design will continue to stand out regardless of steam and moisture in the room. The cistern fittings are WRAS approved and flush and fill valves are supplied.
Finish
Chrome
Weight
0.85kg
Height Type
Standard
Rimless
No
Flush Type
Pull Rod
Trap Option
P-trap
Compliance
BS EN60598-1:2008
Luminaires . General requirements and tests
BS EN60598-2-1:1989
Specification for fixed general purpose luminaries
Additional Information
The high level level wc uses a standard low level pan ( P2 ) and specialed high level cistern, connected with a medium level flush pipe kit T30 CHR
The flush mechanism comes in two options : dual flush rod pull cistern C5, or single flush chain pull cistern C28PK
A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR
Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length.
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm.
P trap standard height pan - height from floor to pan rim is 40cm.
Regal Height pan ( floor to pan rim height 48cm ) available : P16
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26
Cistern can be used with optional decorative Ornate Brackets T32 CHR
High level wc can be used with standard Burlington toilet seats or with the Throne seats ( S14 & S15 )
Supplied with floor fixings.
Recommended to be used with cistern tank isolation valve W25
Water Inlet valve hole is located on the side of cistern tank.
Inlet valve (SP7)
Lifetime guarantee*
