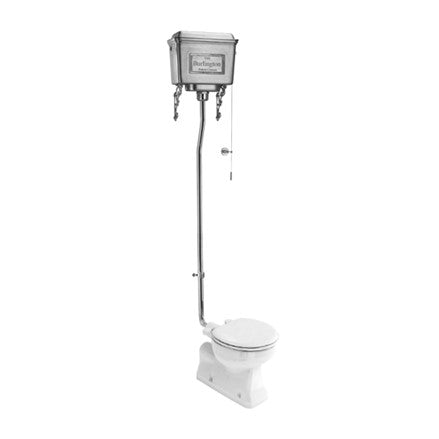

Standard High Level WC with Dual Flush Aluminium Cistern

Lifetime guarantee*

1 x Brushed aluminium high level cistern including cistern fittings (T58ALU) (Previous code: T58 ALU)

1 x High level flush pipe kit including lever, rigid pull rod, flush pipe, reverse screw cistern connector, stopper and ornate brackets (T30CHR) (Previous code: T30 CHR)

1 x Low/high level pan (P2)

Finish	White
Material	Vitreous China
Shape	Standard
Length	670mm
Width	430mm
Height	2400mm
Weight	36.15kg
Height Type	Standard
Rimless	No
Flush Type	Pull Rod
Trap Option	P-trap
Compliance	BS EN 33:2011 Pedestal W.C. pans with close-coupled flushing cistern BS EN 997:2012 WC pans and WC suites with integral trap
Additional Information	The water inlet valve hole is located on either side of the cistern tank The high level level wc uses a standard low level pan ( P2 ) and specialed high level cistern, connected with a medium level flush pipe kit T30 CHR The flush mechanism is a dual flush rod pull cistern C5. A special flush pipe kit that allows the cistern to be placed on a wall next to the pan is available : Angled Flush Pipe Kit T34 CHR Low Level wc can be used where the soil pipe is located in the floor. The pan can be located over the soil pipe by cutting the horizontal flush pipe to length. The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 2,380mm to the top of the cistern, minimum height is 1,625mm. Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511). P trap standard height pan - height from floor to pan rim is 40cm. Regal Height pan ( floor to pan rim height 48cm ) available : P16 Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26 Cistern can be used with optional decorative Ornate Brackets T32 CHR High level wc can be used with standard Burlington toilet seats or with the Throne seats ( S14 & S15 ) Supplied with floor fixings.
