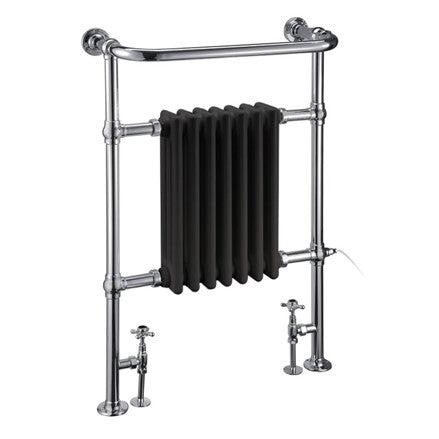

Trafalgar Radiator with Black Insert

5 year guarantee*

1 x Trafalgar - Chrome with Black Insert (R1CHRBLA) (Previous code: R1 CHR BLA)

Type	T = 50°c Watts	T = 55°c Watts	T = 60°c Watts	BTU's	DM3
Trafalgar	475	540	600	2047	7.2
Bloomsbury	356	400	445	1518	5.0
Vincent	219	250	280	955	2.9
Berkeley	180	210	240	819	2.4
Cleaver	164	190	210	717	2.2
Strand	218	250	280	955	2.4
Chaplin	235	268	300	1024	3.4

Maximum capacity when using a heating element is 90% of full capacity.

Please consult the installation guide for each model.

Finish	Chrome
Material	Steel
Accent Colour	Black
Length	235mm
Width	642mm
Height	950mm
Weight	49.25kg
Compliance	BS EN 14688:2006 Sanitary appliances. Wash basins. Functional requirements and test methods BS EN 31:2011 Pedestal wash basins. Connecting dimensions
Additional Information	Diameter of tubes is 32mm. Output:2346 BTUs/558 watts (³T=50) For technical information on the summer heating kit please refer to the summer heating kit sectio Distance from wall to the rail is 110mm. High quality chrome plated finish. Valves are required. These are not included. Designed to be plumbed into your central heating system. Operating pressure up to 8 bar.(Certified by BEN N.L) Maximum working temperature:95 420mm plumbing pipe centers
Additional Infomation	Fill the radiator approximately 90% (6.5) with an anti-rust mixture if the radiator is to be used for electric heating only (not connected to a central heating system) Includes all brackets and fixings.
