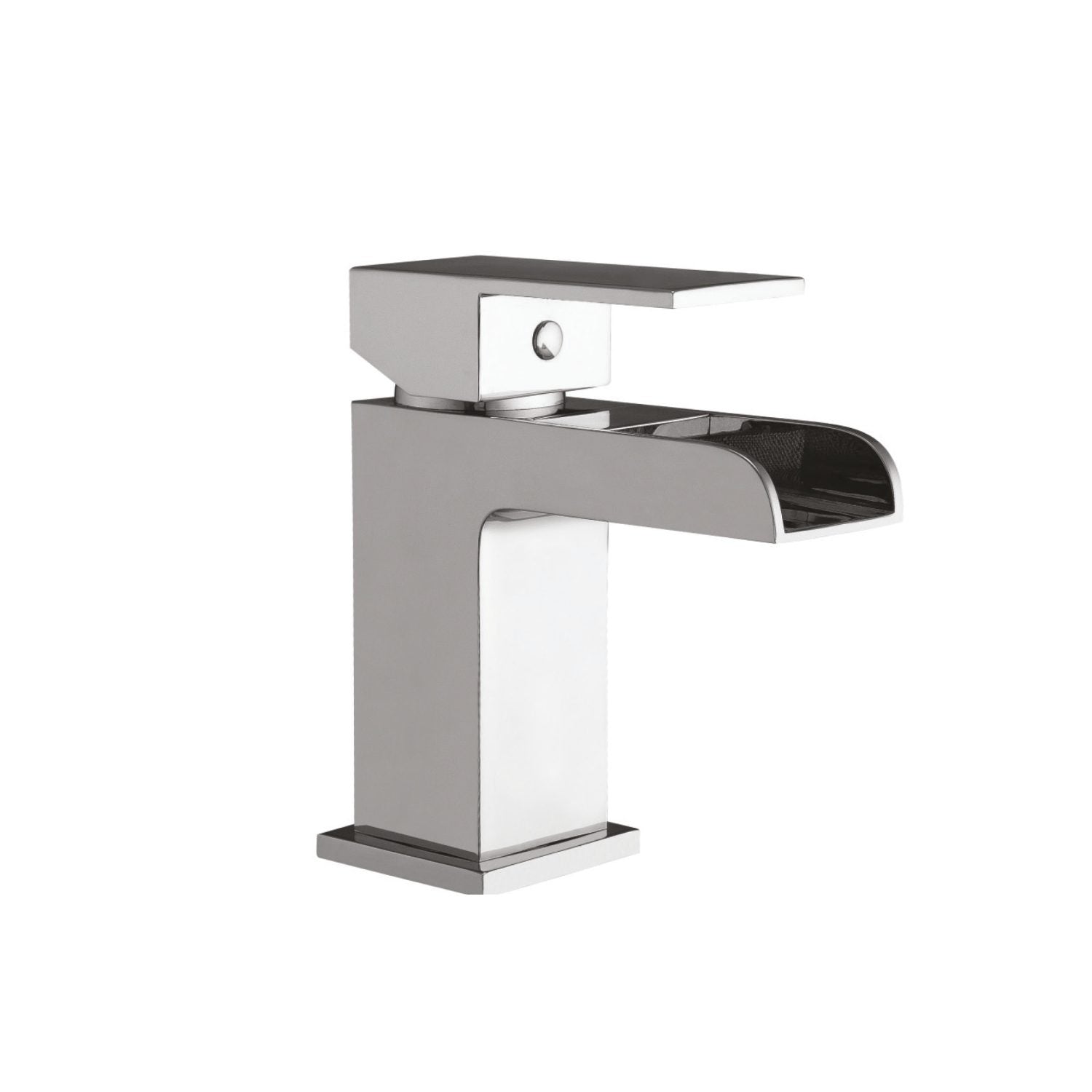

Victoria Mono Basin Mixer with Push Waste

Victoria Mono Basin Mixer with Push Waste

TAP001

£127.00 GBP
£127.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

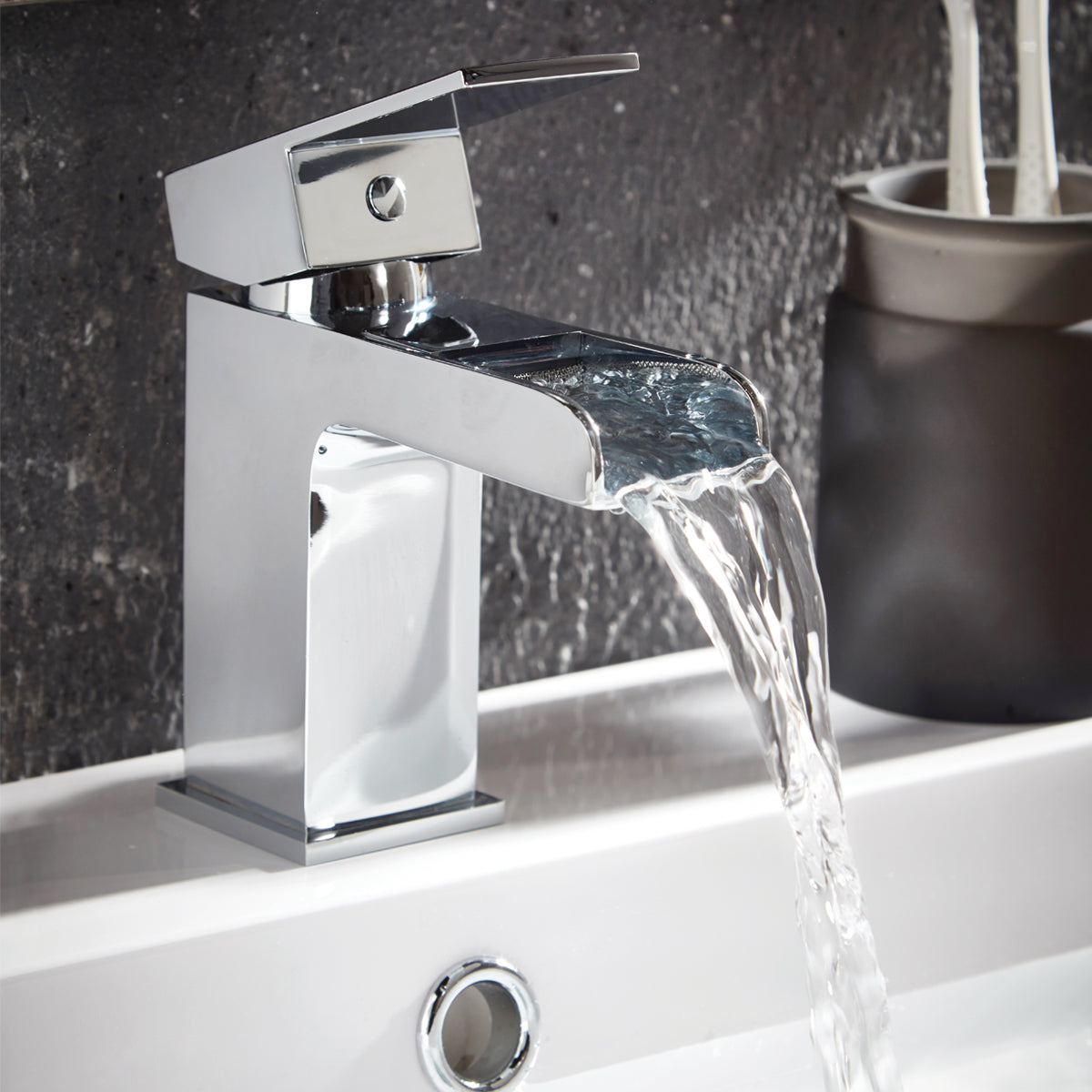

Scudo best-selling Victoria taps will add a touch of luxury to your bathroom. The open spout waterfall design is extremely classy with angular tap lever.

The range includes a mini mono basin mixer for cloakroom basins, mono basin mixer, bath filler and bath shower mixer options.

General Specification

Construction Material
Brass
Installation type
Mono mixer
Colour / Finish
Chrome

Tap / Shower specification

WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.2
Maximum Operating Pressure (bar)
5
Flexible Tails Included
Yes
Number of tap holes required
1
Handle Type
Lever
Swivel Spout
No
Inlet Connection
1/2 BSP
Outlet Connection
N/a
Tap Hole Diameter (mm)
35
Tap Type description
Mono Mixer
Includes Waste
Yes
Valve / Cartridge Type
Plastic Cartridge
Cartridge Spare code
T8702-08

Flow Rates

0.2bar (l/min)
4.4
0.5bar (l/min)
6.8
1bar (l/min)
10
2bar (l/min)
14.3
3bar (l/min)
17

Product Transportation

Barcode: 5060500640613
Country of origin: CH
Commodity code: 8481801190

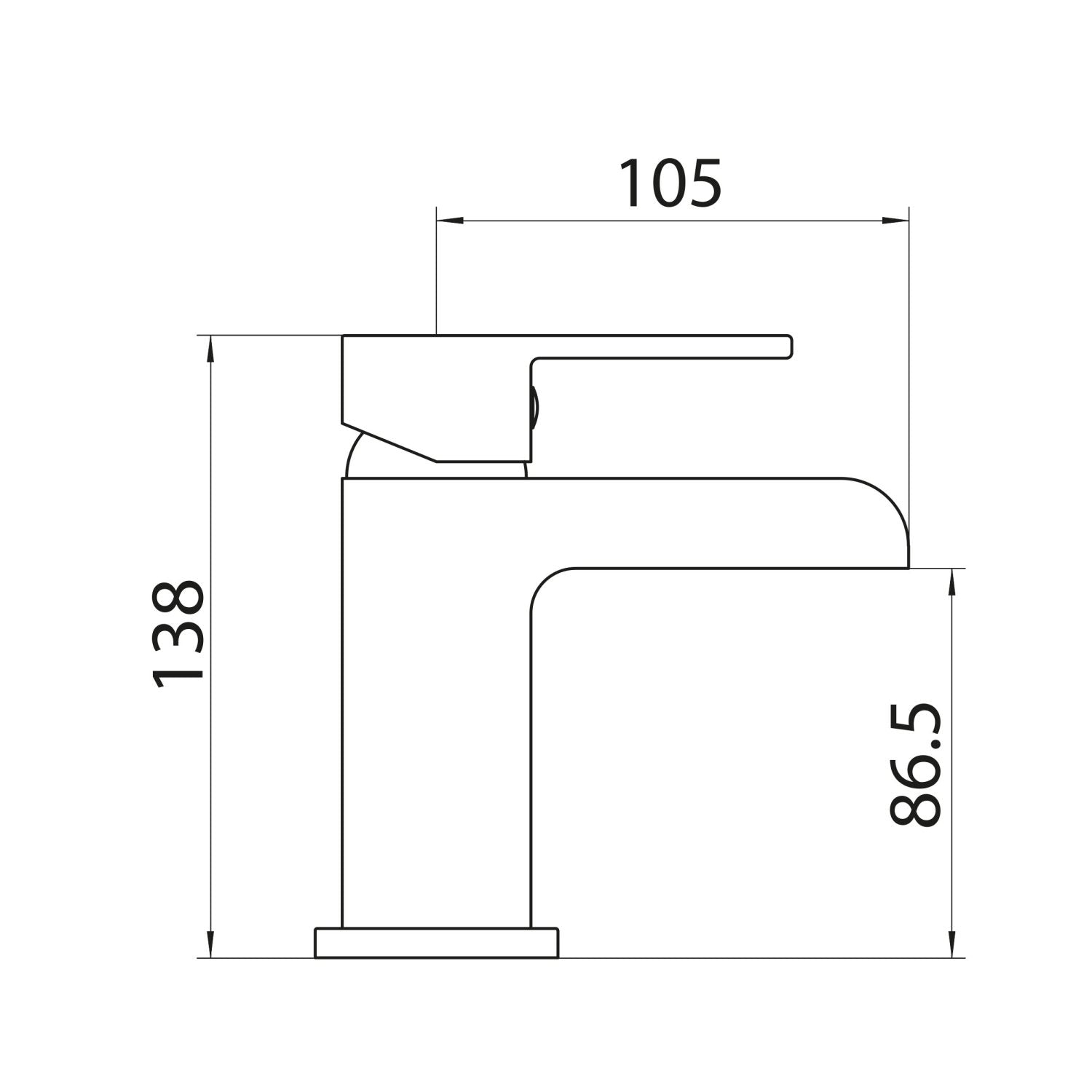

Product Measurements

Product Weight (KG): 1.38
Product Width (mm): 54
Product Height (mm): 138
Product Depth (mm): 0
Product Length (mm): 132

Primary Packed Measurements

Packaged Weight: 1.6
Packed Length: 25.5
Packed Width: 17
Packed Height: 8

Packaging Weights

Card (kg): 0.2475
Paper (kg): 0
Wood (kg): 0
Plastic (kg): 0.25

Compliance DOP

HBDOC038 , HBDOC039 , HBDOC040 , HBDOC041
