SCUDO

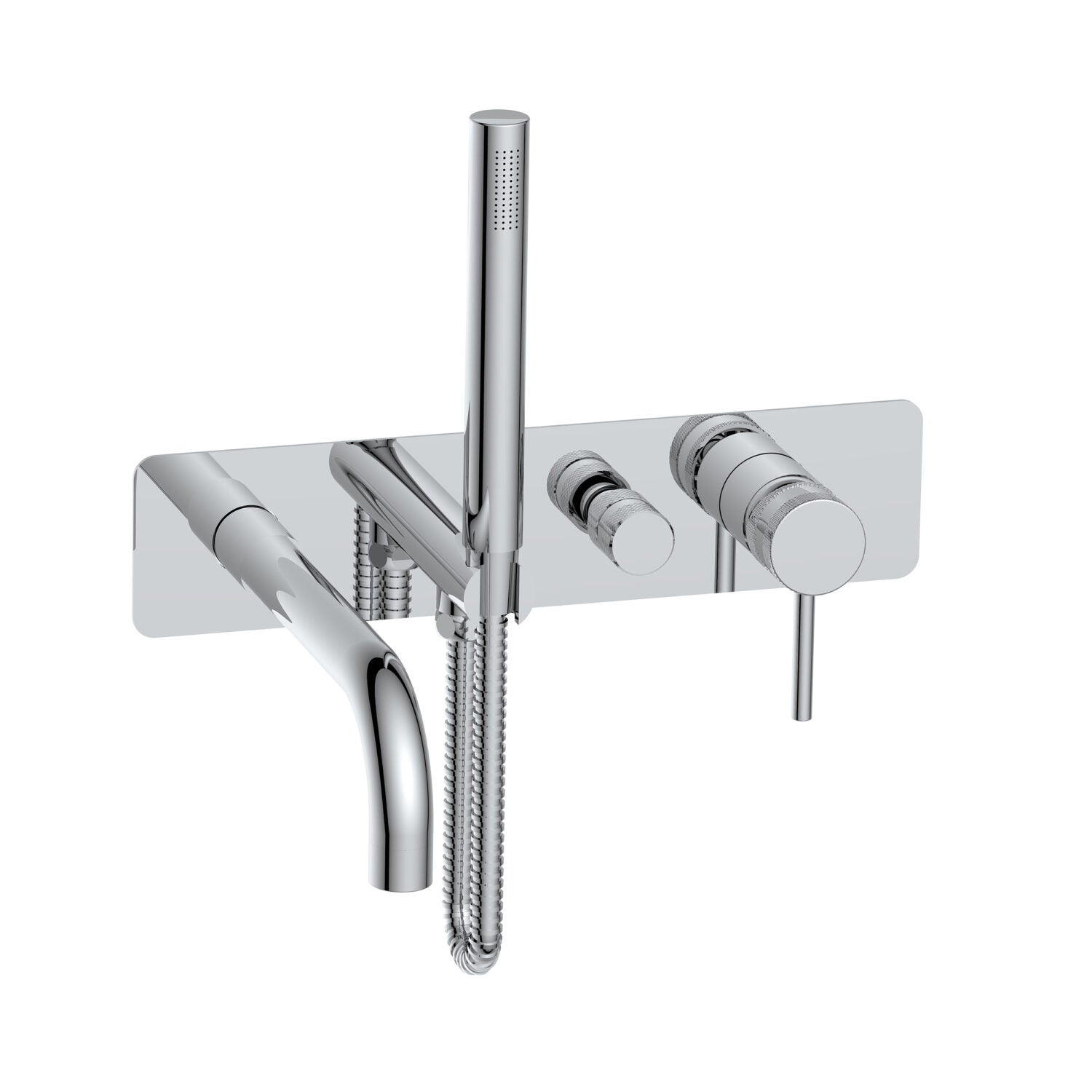

Wall Mounted Bath Shower Mixer & Handset Chrome

Wall Mounted Bath Shower Mixer & Handset Chrome

NU-149

£590.00 GBP
£590.00 GBP
Sale Sold out
Tax included.
Material
Installation
Finish

Our collection of Core taps offers a minimalist design that will be a welcome addition to any modern bathroom design. Core is supplied with two handle options giving you the flexibility to change to overall look with a diamond cross hatch detail or a sleek smooth appearance.

With a broad range of options, Core is also available in gunmetal, matte black, brushed bronze, and brushed brass. Most of this collection is WRAS approved to meet the strictest standards for use in the UK.

General Specification

Colour / Finish
Chrome
Installation type
Wall Mounted
Construction Material
Brass / Stainless

Tap / Shower specification

WRAS Approved
No
TMV Approved
No
Minimum Operating Pressure (bar)
0.5
Maximum Operating Pressure (bar)
5
Installation Depth
40mm - 60mm
Inlet Connection
1/2"
Shower Type description
Wall Mounted
Valve / Cartridge Type
Thermostatic

Flow Rates

0.2bar (l/min)
3.6
0.5bar (l/min)
7.8
1bar (l/min)
8.6
2bar (l/min)
11.7
3bar (l/min)
15.6
5bar (l/min)
20.4

Product Transportation

Barcode: 5060991257345
Country of origin: CH
Commodity code: 8481801190

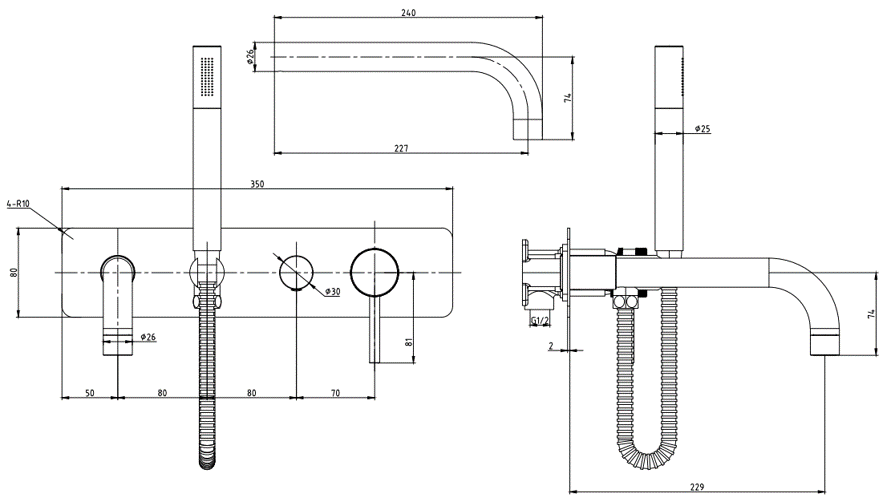

Product Measurements (See Line Drawing)

Product Weight (KG): TBC
Product Width (mm): 350
Product Height (mm): 80
Product Depth (mm): 240
Installation Depth
40mm – 60mm Maximum

Primary Packed Measurements

Packaged Weight: TBC
Packed Height: 150
Packed Width: 460
Packed Length: 255
